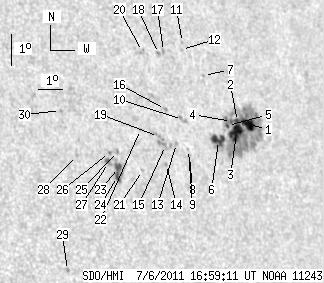

SDO HMI 2011-07-06 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.39 | 219.55 | 30.20 | 152.42 | 16.94 | 354.08 | 42.98 | 290.91 | 0.7001 | -449.4 | -236.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-06 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.17 | 159.08 | 7.24 | 112.38 | 17.14 | 355.79 | 44.70 | 290.67 | 0.7207 | -782.0 | -294.8 | |
| 1.54 | -1.00 | 1.09 | -1.00 | 17.26 | 355.33 | 44.24 | 290.96 | 0.7157 | -747.5 | 999999 | |
| 13.44 | -1.00 | 9.46 | -1.00 | 16.92 | 355.19 | 44.09 | 290.54 | 0.7132 | -974.5 | 999999 | |
| 1.54 | -1.00 | 1.09 | -1.00 | 17.27 | 355.07 | 43.97 | 291.05 | 0.7128 | -835.5 | 999999 | |
| 1.36 | -1.00 | 0.95 | -1.00 | 17.15 | 354.86 | 43.76 | 290.95 | 0.7100 | -836.6 | 999999 | |
| 9.44 | -1.00 | 6.55 | -1.00 | 16.70 | 354.33 | 43.23 | 290.48 | 0.7027 | -907.1 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 18.76 | 354.29 | 43.19 | 293.34 | 0.7082 | 533.0 | 400.2 | |
| 0.00 | 1.63 | 0.00 | 1.11 | 16.25 | 352.95 | 41.86 | 290.27 | 0.6852 | -522.0 | -372.1 | |
| 0.00 | 1.09 | 0.00 | 0.74 | 16.47 | 352.97 | 41.87 | 290.58 | 0.6860 | -586.0 | -422.0 | |
| 0.00 | 4.00 | 0.00 | 2.72 | 17.41 | 352.97 | 41.87 | 291.92 | 0.6888 | -739.0 | -540.0 | |
| 0.00 | 1.09 | 0.00 | 0.76 | 19.83 | 353.71 | 42.62 | 295.02 | 0.7052 | -538.0 | -387.5 | |
| 0.00 | 1.00 | 0.00 | 0.69 | 19.61 | 353.60 | 42.50 | 294.76 | 0.7031 | -532.0 | -417.6 | |
| 0.00 | 1.73 | 0.00 | 1.16 | 16.68 | 352.51 | 41.41 | 291.02 | 0.6811 | -643.0 | -582.6 | |
| 0.00 | 1.18 | 0.00 | 0.79 | 16.04 | 351.92 | 40.83 | 290.29 | 0.6722 | -753.0 | -620.3 | |
| 0.00 | 6.81 | 0.00 | 4.56 | 16.63 | 352.03 | 40.94 | 291.11 | 0.6753 | -851.0 | -742.9 | |
| 0.00 | 1.45 | 0.00 | 0.98 | 17.76 | 352.34 | 41.24 | 292.62 | 0.6824 | 576.0 | 488.1 | |
| 0.00 | 1.82 | 0.00 | 1.25 | 19.58 | 352.80 | 41.70 | 295.01 | 0.6939 | -680.0 | -553.8 | |
| 0.00 | 1.54 | 0.00 | 1.06 | 19.53 | 352.56 | 41.47 | 295.03 | 0.6911 | -835.0 | -724.7 | |
| 0.00 | 4.45 | 0.00 | 2.97 | 16.92 | 351.81 | 40.72 | 291.61 | 0.6735 | -584.0 | -628.3 | |
| 0.00 | 2.45 | 0.00 | 1.66 | 19.61 | 351.90 | 40.81 | 295.41 | 0.6838 | -546.0 | -546.5 | |
| 0.00 | 1.00 | 0.00 | 0.66 | 15.89 | 350.88 | 39.79 | 290.41 | 0.6590 | 381.0 | 279.2 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 17.17 | 351.12 | 40.03 | 292.21 | 0.6660 | -470.0 | -439.0 | |
| 3.90 | 15.07 | 2.53 | 9.77 | 16.02 | 349.93 | 38.83 | 290.94 | 0.6476 | 687.7 | 491.2 | |
| 2.00 | -23.00 | 1.29 | -23.00 | 15.74 | 349.82 | 38.73 | 290.56 | 0.6454 | 784.5 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.36 | 16.52 | 350.01 | 38.91 | 291.66 | 0.6502 | 481.0 | 363.4 | |
| 0.00 | 1.63 | 0.00 | 1.06 | 16.50 | 349.67 | 38.58 | 291.76 | 0.6460 | 650.0 | 531.9 | |
| 0.00 | 3.81 | 0.00 | 2.46 | 16.19 | 349.56 | 38.47 | 291.33 | 0.6436 | 1012.0 | 776.3 | |
| 0.00 | 1.63 | 0.00 | 1.04 | 16.45 | 348.33 | 37.24 | 292.22 | 0.6291 | 675.0 | 534.1 | |
| 0.00 | 1.82 | 0.00 | 1.13 | 12.90 | 347.28 | 36.18 | 286.99 | 0.6039 | 636.0 | 493.1 | |
| 0.00 | 1.27 | 0.00 | 0.81 | 17.88 | 348.02 | 36.93 | 294.53 | 0.6308 | 464.0 | 405.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
