SDO HMI 2011-07-06 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.58 | 207.02 | 31.47 | 149.21 | 16.94 | 354.08 | 45.21 | 290.28 | 0.7254 | -384.5 | -219.9 | |
|
previous
or next observation for the same group /

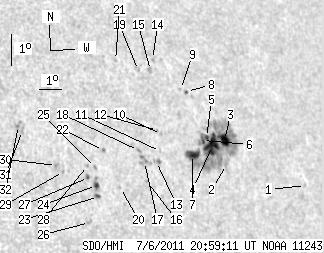

back to the solar disc SDO HMI 2011-07-06 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.64 | 15.53 | 359.20 | 50.33 | 287.25 | 0.7788 | -429.0 | -352.7 | |
| 0.00 | 5.36 | 0.00 | 3.95 | 16.35 | 355.66 | 46.79 | 289.04 | 0.7422 | 5.0 | -8.2 | |
| 7.26 | 149.53 | 5.38 | 109.64 | 17.10 | 355.81 | 46.94 | 290.00 | 0.7454 | -756.0 | -297.8 | |
| 16.43 | -3.00 | 12.03 | -3.00 | 16.96 | 355.21 | 46.34 | 289.98 | 0.7385 | -879.4 | 999999 | |
| 1.91 | -3.00 | 1.39 | -3.00 | 17.22 | 355.02 | 46.14 | 290.37 | 0.7370 | -809.3 | 999999 | |
| 1.36 | -3.00 | 0.99 | -3.00 | 17.14 | 354.80 | 45.93 | 290.31 | 0.7344 | -809.6 | 999999 | |
| 9.81 | -3.00 | 7.05 | -3.00 | 16.72 | 354.22 | 45.34 | 289.91 | 0.7268 | -851.1 | 999999 | |
| 1.27 | 1.36 | 0.93 | 0.99 | 18.70 | 354.59 | 45.71 | 292.46 | 0.7360 | 446.9 | 225.0 | |
| 0.00 | 1.00 | 0.00 | 0.73 | 18.78 | 354.34 | 45.46 | 292.63 | 0.7335 | 553.0 | 403.9 | |
| 0.00 | 1.45 | 0.00 | 1.03 | 17.40 | 353.03 | 44.15 | 291.16 | 0.7151 | -645.0 | -453.7 | |
| 0.00 | 0.91 | 0.00 | 0.64 | 16.87 | 352.82 | 43.95 | 290.50 | 0.7113 | -532.0 | -381.4 | |
| 0.00 | 0.91 | 0.00 | 0.64 | 17.53 | 352.89 | 44.02 | 291.39 | 0.7139 | -702.0 | -572.6 | |
| 0.00 | 3.63 | 0.00 | 2.54 | 16.57 | 352.56 | 43.69 | 290.15 | 0.7075 | -602.0 | -583.3 | |
| 0.00 | 0.91 | 0.00 | 0.65 | 19.77 | 353.40 | 44.53 | 294.25 | 0.7261 | -526.0 | -461.9 | |
| 0.00 | 2.63 | 0.00 | 1.88 | 19.43 | 353.19 | 44.32 | 293.86 | 0.7227 | -633.0 | -512.5 | |
| 0.00 | 0.91 | 0.00 | 0.63 | 15.96 | 352.00 | 43.12 | 289.47 | 0.6993 | -761.0 | -632.3 | |
| 0.00 | 6.45 | 0.00 | 4.47 | 16.59 | 352.04 | 43.16 | 290.33 | 0.7015 | -815.0 | -704.9 | |
| 0.00 | 2.18 | 0.00 | 1.51 | 16.94 | 351.88 | 43.00 | 290.88 | 0.7005 | -712.0 | -605.5 | |
| 0.00 | 1.00 | 0.00 | 0.71 | 19.45 | 352.66 | 43.78 | 294.07 | 0.7169 | -698.0 | -556.2 | |
| 0.00 | 1.00 | 0.00 | 0.68 | 15.82 | 350.79 | 41.92 | 289.62 | 0.6847 | 393.0 | 307.5 | |
| 0.00 | 1.18 | 0.00 | 0.83 | 19.81 | 351.75 | 42.88 | 294.87 | 0.7079 | -506.0 | -420.2 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 17.00 | 350.38 | 41.51 | 291.43 | 0.6831 | 562.0 | 450.7 | |
| 1.82 | 2.18 | 1.21 | 1.45 | 15.58 | 349.80 | 40.93 | 289.57 | 0.6720 | 601.0 | 575.8 | |
| 2.45 | 5.72 | 1.64 | 3.82 | 15.92 | 349.80 | 40.93 | 290.07 | 0.6730 | 641.2 | 579.3 | |
| 0.00 | 1.73 | 0.00 | 1.16 | 16.49 | 349.90 | 41.03 | 290.85 | 0.6758 | 514.0 | 440.7 | |
| 0.00 | 2.54 | 0.00 | 1.68 | 14.79 | 349.24 | 40.37 | 288.58 | 0.6629 | 570.0 | 471.1 | |
| 1.27 | 1.63 | 0.85 | 1.09 | 16.19 | 349.53 | 40.66 | 290.54 | 0.6705 | 799.0 | 701.8 | |
| 0.00 | 0.82 | 0.00 | 0.55 | 16.56 | 349.58 | 40.71 | 291.07 | 0.6722 | 609.0 | 488.4 | |
| 0.00 | 0.82 | 0.00 | 0.54 | 16.41 | 348.55 | 39.67 | 291.21 | 0.6591 | 735.0 | 605.0 | |
| 0.00 | 2.00 | 0.00 | 1.31 | 16.61 | 348.30 | 39.43 | 291.58 | 0.6568 | 822.0 | 644.0 | |
| 0.00 | 2.81 | 0.00 | 1.83 | 17.75 | 347.19 | 38.32 | 293.71 | 0.6473 | 783.0 | 601.8 | |
| 0.00 | 4.18 | 0.00 | 2.70 | 17.91 | 347.07 | 38.20 | 294.01 | 0.6464 | 774.0 | 637.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
