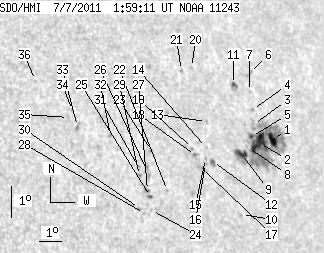

SDO HMI 2011-07-07 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.51 | 181.74 | 32.45 | 137.85 | 16.99 | 354.20 | 48.09 | 289.59 | 0.7572 | -353.3 | -187.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-07 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.54 | 129.15 | 5.89 | 99.73 | 17.07 | 355.84 | 49.73 | 289.30 | 0.7751 | -590.2 | -260.4 | |
| 21.62 | -1.00 | 16.64 | -1.00 | 16.97 | 355.17 | 49.06 | 289.32 | 0.7678 | -795.4 | 999999 | |
| 0.00 | 3.18 | 0.00 | 2.45 | 17.58 | 355.09 | 48.98 | 290.11 | 0.7683 | -501.0 | -466.3 | |
| 0.00 | 1.18 | 0.00 | 0.91 | 18.05 | 355.22 | 49.11 | 290.69 | 0.7705 | -547.0 | -423.1 | |
| 1.45 | -1.00 | 1.11 | -1.00 | 17.21 | 354.86 | 48.75 | 289.69 | 0.7651 | -741.4 | 999999 | |
| 0.00 | 2.82 | 0.00 | 2.20 | 19.18 | 355.52 | 49.41 | 292.06 | 0.7761 | 578.0 | 518.8 | |
| 0.00 | 0.45 | 0.00 | 0.35 | 18.62 | 355.29 | 49.18 | 291.40 | 0.7725 | -235.0 | -280.0 | |
| 0.00 | 1.36 | 0.00 | 1.04 | 16.87 | 354.55 | 48.44 | 289.33 | 0.7611 | -744.0 | -605.3 | |
| 6.99 | -1.00 | 5.28 | -1.00 | 16.70 | 354.20 | 48.09 | 289.18 | 0.7570 | -796.0 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.74 | 14.81 | 353.61 | 47.50 | 286.82 | 0.7469 | -589.0 | -519.5 | |
| 1.18 | 4.90 | 0.91 | 3.76 | 18.87 | 354.60 | 48.49 | 291.89 | 0.7659 | 478.0 | 126.1 | |
| 0.64 | 3.27 | 0.47 | 2.40 | 16.51 | 352.77 | 46.66 | 289.26 | 0.7410 | -721.0 | -582.8 | |
| 0.00 | 1.09 | 0.00 | 0.81 | 17.77 | 352.91 | 46.80 | 290.89 | 0.7453 | -555.0 | -458.1 | |
| 0.00 | 0.27 | 0.00 | 0.20 | 16.96 | 352.64 | 46.53 | 289.89 | 0.7405 | -478.0 | -447.0 | |
| 0.00 | 0.91 | 0.00 | 0.66 | 16.62 | 352.48 | 46.37 | 289.47 | 0.7380 | -588.0 | -521.2 | |
| 0.00 | 1.45 | 0.00 | 1.06 | 16.46 | 352.43 | 46.32 | 289.28 | 0.7371 | -762.0 | -654.1 | |
| 0.00 | 3.27 | 0.00 | 2.38 | 16.31 | 352.20 | 46.09 | 289.14 | 0.7342 | -528.0 | -493.2 | |
| 0.00 | 2.82 | 0.00 | 2.05 | 16.73 | 352.06 | 45.95 | 289.73 | 0.7335 | -891.0 | -757.2 | |
| 0.00 | 1.00 | 0.00 | 0.73 | 16.95 | 351.99 | 45.88 | 290.05 | 0.7333 | -722.0 | -651.2 | |
| 0.00 | 0.73 | 0.00 | 0.54 | 19.49 | 352.82 | 46.71 | 293.17 | 0.7487 | -654.0 | -581.9 | |
| 0.00 | 0.73 | 0.00 | 0.54 | 19.42 | 352.32 | 46.21 | 293.22 | 0.7432 | -601.0 | -551.6 | |
| 0.00 | 0.73 | 0.00 | 0.51 | 15.70 | 350.49 | 44.38 | 288.72 | 0.7132 | 490.0 | 343.0 | |
| 0.00 | 1.18 | 0.00 | 0.83 | 16.97 | 350.14 | 44.03 | 290.57 | 0.7123 | 500.0 | 414.4 | |
| 0.00 | 0.82 | 0.00 | 0.57 | 15.10 | 349.62 | 43.51 | 288.12 | 0.7017 | 366.0 | 301.7 | |
| 1.73 | 1.82 | 1.20 | 1.26 | 15.54 | 349.69 | 43.58 | 288.71 | 0.7036 | 460.1 | 572.0 | |
| 0.00 | 4.72 | 0.00 | 3.30 | 16.26 | 349.80 | 43.69 | 289.68 | 0.7066 | 196.0 | 338.5 | |
| 1.36 | 2.27 | 0.95 | 1.58 | 15.73 | 349.61 | 43.50 | 289.00 | 0.7031 | 587.3 | 564.6 | |
| 0.00 | 0.82 | 0.00 | 0.56 | 15.02 | 349.30 | 43.19 | 288.09 | 0.6977 | 585.0 | 501.9 | |
| 0.00 | 1.18 | 0.00 | 0.82 | 16.21 | 349.39 | 43.28 | 289.73 | 0.7017 | 753.0 | 650.8 | |
| 0.00 | 1.36 | 0.00 | 0.94 | 15.19 | 349.12 | 43.01 | 288.37 | 0.6960 | 697.0 | 617.2 | |
| 0.00 | 0.91 | 0.00 | 0.63 | 16.49 | 349.43 | 43.32 | 290.12 | 0.7029 | 612.0 | 551.6 | |
| 0.00 | 1.63 | 0.00 | 1.12 | 17.51 | 348.50 | 42.39 | 291.82 | 0.6948 | 718.0 | 480.9 | |
| 0.00 | 3.18 | 0.00 | 2.14 | 17.84 | 347.17 | 41.06 | 292.75 | 0.6803 | 745.0 | 574.6 | |
| 0.00 | 0.36 | 0.00 | 0.25 | 18.35 | 347.11 | 41.00 | 293.50 | 0.6812 | 548.0 | 462.0 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 18.14 | 346.87 | 40.76 | 293.28 | 0.6778 | 645.0 | 512.5 | |
| 0.00 | 0.27 | 0.00 | 0.18 | 19.36 | 345.83 | 39.72 | 295.43 | 0.6699 | 505.0 | 425.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
