SDO HMI 2011-07-07 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.25 | 176.71 | 29.28 | 149.57 | 17.26 | 354.60 | 53.42 | 288.83 | 0.8120 | -235.5 | -216.7 | |
|
previous
or next observation for the same group /

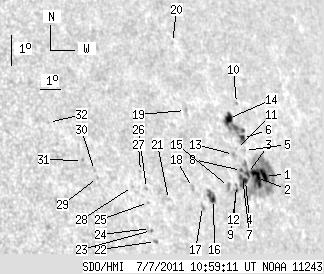

back to the solar disc SDO HMI 2011-07-07 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.54 | 108.47 | 4.82 | 93.46 | 16.98 | 355.90 | 54.72 | 288.26 | 0.8243 | -482.5 | -186.3 | |
| 10.27 | -1.00 | 8.84 | -1.00 | 16.94 | 355.44 | 54.26 | 288.28 | 0.8199 | -761.9 | 999999 | |
| 1.64 | -1.00 | 1.39 | -1.00 | 17.09 | 355.01 | 53.84 | 288.53 | 0.8160 | -745.9 | 999999 | |
| 2.18 | -1.00 | 1.85 | -1.00 | 16.88 | 354.81 | 53.64 | 288.31 | 0.8138 | -796.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 1.01 | 17.81 | 355.16 | 53.99 | 289.38 | 0.8185 | -465.0 | -362.5 | |
| 2.63 | 27.71 | 2.27 | 23.71 | 18.19 | 355.22 | 54.05 | 289.83 | 0.8197 | -488.2 | -367.8 | |
| 0.91 | -1.00 | 0.77 | -1.00 | 17.01 | 354.71 | 53.53 | 288.48 | 0.8130 | -795.7 | 999999 | |
| 1.09 | -1.00 | 0.92 | -1.00 | 17.20 | 354.73 | 53.56 | 288.71 | 0.8135 | -736.7 | 999999 | |
| 0.36 | 2.36 | 0.30 | 1.97 | 16.62 | 354.23 | 53.05 | 288.09 | 0.8078 | -674.0 | -594.4 | |
| 0.00 | 1.09 | 0.00 | 0.95 | 19.30 | 355.41 | 54.24 | 291.13 | 0.8232 | 383.0 | 403.4 | |
| 0.00 | 0.73 | 0.00 | 0.62 | 17.90 | 354.76 | 53.59 | 289.55 | 0.8148 | -546.0 | -496.1 | |
| 0.00 | 1.09 | 0.00 | 0.91 | 16.75 | 354.28 | 53.10 | 288.23 | 0.8084 | -708.0 | -620.6 | |
| 0.00 | 1.64 | 0.00 | 1.38 | 17.72 | 354.52 | 53.34 | 289.38 | 0.8123 | -610.0 | -512.8 | |
| 7.18 | -6.00 | 6.13 | -6.00 | 18.85 | 354.76 | 53.58 | 290.71 | 0.8163 | 509.8 | 999999 | |
| 0.00 | 3.36 | 0.00 | 2.79 | 16.74 | 353.85 | 52.67 | 288.29 | 0.8042 | -681.0 | -590.4 | |
| 2.45 | 8.36 | 1.99 | 6.78 | 16.37 | 352.92 | 51.75 | 288.00 | 0.7944 | -632.6 | -608.1 | |
| 0.00 | 2.00 | 0.00 | 1.60 | 16.18 | 352.29 | 51.11 | 287.87 | 0.7877 | -654.0 | -587.0 | |
| 0.00 | 2.36 | 0.00 | 1.88 | 16.79 | 352.01 | 50.83 | 288.70 | 0.7858 | -705.0 | -576.4 | |
| 0.00 | 1.91 | 0.00 | 1.56 | 19.21 | 352.63 | 51.45 | 291.59 | 0.7965 | -508.0 | -391.9 | |
| 0.00 | 1.27 | 0.00 | 1.05 | 21.38 | 352.96 | 51.79 | 294.18 | 0.8042 | -496.0 | -382.5 | |
| 0.00 | 1.54 | 0.00 | 1.20 | 16.47 | 350.69 | 49.52 | 288.55 | 0.7716 | 261.0 | 197.2 | |
| 0.00 | 1.73 | 0.00 | 1.31 | 15.20 | 349.65 | 48.47 | 287.11 | 0.7581 | 455.0 | 338.8 | |
| 0.00 | 1.09 | 0.00 | 0.82 | 15.55 | 349.56 | 48.39 | 287.58 | 0.7578 | 375.0 | 303.3 | |
| 0.00 | 0.82 | 0.00 | 0.62 | 15.61 | 349.53 | 48.36 | 287.67 | 0.7577 | 195.0 | 312.6 | |
| 0.00 | 1.00 | 0.00 | 0.76 | 16.42 | 349.70 | 48.53 | 288.69 | 0.7610 | 592.0 | 483.3 | |
| 0.00 | 1.45 | 0.00 | 1.11 | 16.86 | 349.76 | 48.58 | 289.25 | 0.7624 | 412.0 | 282.8 | |
| 0.00 | 0.91 | 0.00 | 0.69 | 17.40 | 349.66 | 48.48 | 289.97 | 0.7624 | 421.0 | 343.7 | |
| 0.00 | 0.91 | 0.00 | 0.68 | 16.95 | 349.11 | 47.94 | 289.51 | 0.7557 | 654.0 | 511.5 | |
| 0.00 | 0.55 | 0.00 | 0.40 | 17.30 | 347.58 | 46.41 | 290.35 | 0.7398 | 629.0 | 563.7 | |
| 0.00 | 1.09 | 0.00 | 0.80 | 17.53 | 347.52 | 46.34 | 290.66 | 0.7396 | 680.0 | 579.7 | |
| 0.00 | 1.00 | 0.00 | 0.73 | 17.86 | 347.07 | 45.90 | 291.23 | 0.7355 | 532.0 | 468.5 | |
| 0.00 | 1.09 | 0.00 | 0.78 | 19.12 | 345.94 | 44.76 | 293.24 | 0.7263 | 450.0 | 326.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
