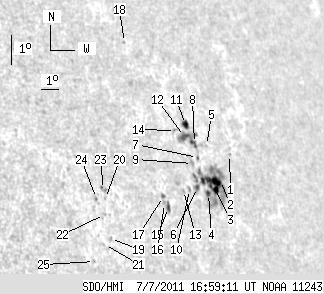

SDO HMI 2011-07-07 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.51 | 128.92 | 35.79 | 118.72 | 17.25 | 354.78 | 56.92 | 288.26 | 0.8444 | -314.9 | -166.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-07 16:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.89 | 17.81 | 357.10 | 59.24 | 288.59 | 0.8652 | -236.0 | -290.9 | |
| 1.09 | 77.54 | 1.04 | 72.73 | 17.03 | 356.14 | 58.28 | 287.81 | 0.8563 | 178.0 | -160.6 | |
| 17.80 | -2.00 | 16.71 | -2.00 | 16.96 | 355.62 | 57.76 | 287.80 | 0.8517 | -624.1 | 999999 | |
| 2.18 | -2.00 | 2.02 | -2.00 | 16.66 | 355.24 | 57.38 | 287.50 | 0.8481 | -564.6 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.60 | 18.16 | 355.86 | 58.00 | 289.16 | 0.8551 | -191.0 | -146.0 | |
| 2.09 | -2.00 | 1.91 | -2.00 | 16.88 | 354.69 | 56.83 | 287.83 | 0.8434 | -715.4 | 999999 | |
| 0.91 | 1.54 | 0.85 | 1.44 | 17.81 | 355.14 | 57.28 | 288.86 | 0.8485 | -275.7 | -294.3 | |
| 3.18 | 17.25 | 2.96 | 15.99 | 18.25 | 355.19 | 57.33 | 289.37 | 0.8494 | -510.5 | -441.1 | |
| 0.00 | 2.36 | 0.00 | 2.17 | 17.64 | 354.76 | 56.90 | 288.71 | 0.8449 | -672.0 | -552.1 | |
| 0.00 | 1.36 | 0.00 | 1.23 | 16.84 | 354.21 | 56.34 | 287.85 | 0.8391 | -662.0 | -609.1 | |
| 3.72 | 5.36 | 3.46 | 4.98 | 18.87 | 354.97 | 57.11 | 290.12 | 0.8483 | 471.5 | 252.9 | |
| 5.18 | -8.00 | 4.78 | -8.00 | 18.50 | 354.72 | 56.86 | 289.73 | 0.8456 | -387.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.22 | 16.83 | 353.85 | 55.99 | 287.88 | 0.8358 | -594.0 | -557.8 | |
| 0.00 | 2.18 | 0.00 | 1.99 | 18.71 | 354.30 | 56.44 | 290.04 | 0.8422 | 505.0 | 417.0 | |
| 1.91 | 3.36 | 1.66 | 2.93 | 16.34 | 352.80 | 54.93 | 287.45 | 0.8254 | -658.0 | -529.0 | |
| 0.00 | 2.81 | 0.00 | 2.45 | 16.48 | 352.63 | 54.77 | 287.64 | 0.8241 | -729.0 | -523.0 | |
| 0.45 | 1.91 | 0.40 | 1.66 | 16.70 | 352.67 | 54.81 | 287.89 | 0.8247 | -592.4 | -480.6 | |
| 0.00 | 1.18 | 0.00 | 1.05 | 21.61 | 352.91 | 55.05 | 293.72 | 0.8344 | -492.0 | -417.1 | |
| 0.00 | 1.27 | 0.00 | 1.02 | 15.53 | 349.39 | 51.53 | 286.98 | 0.7910 | 265.0 | 235.2 | |
| 0.00 | 0.82 | 0.00 | 0.66 | 16.78 | 349.60 | 51.74 | 288.51 | 0.7949 | 374.0 | 293.1 | |
| 0.00 | 0.27 | 0.00 | 0.22 | 15.36 | 349.03 | 51.17 | 286.82 | 0.7870 | 532.0 | 499.0 | |
| 0.00 | 1.27 | 0.00 | 1.03 | 16.29 | 349.36 | 51.50 | 287.93 | 0.7917 | 521.0 | 487.8 | |
| 0.00 | 2.81 | 0.00 | 2.29 | 17.07 | 349.60 | 51.74 | 288.86 | 0.7955 | 494.0 | 372.6 | |
| 0.00 | 1.54 | 0.00 | 1.24 | 16.80 | 349.14 | 51.28 | 288.62 | 0.7904 | 720.0 | 571.8 | |
| 0.00 | 1.18 | 0.00 | 0.93 | 14.86 | 348.36 | 50.50 | 286.30 | 0.7793 | 493.0 | 415.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
