SDO HMI 2011-07-08 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.99 | 56.21 | 14.21 | 72.96 | 17.06 | 355.25 | 67.31 | 286.99 | 0.9238 | -402.5 | 4.6 | |
|
previous
or next observation for the same group /

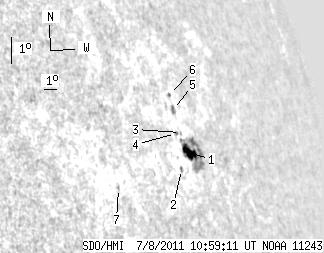

back to the solar disc SDO HMI 2011-07-08 10:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.99 | 46.33 | 14.21 | 60.66 | 16.93 | 355.43 | 67.49 | 286.84 | 0.9250 | -491.8 | 72.5 | |
| 0.00 | 1.54 | 0.00 | 1.92 | 16.44 | 354.51 | 66.57 | 286.36 | 0.9188 | -395.0 | -385.7 | |
| 0.00 | 0.45 | 0.00 | 0.58 | 17.58 | 355.25 | 67.31 | 287.55 | 0.9241 | -170.0 | -117.6 | |
| 0.00 | 1.27 | 0.00 | 1.61 | 17.57 | 354.83 | 66.89 | 287.57 | 0.9214 | -500.0 | -465.3 | |
| 0.00 | 3.63 | 0.00 | 4.67 | 18.31 | 355.24 | 67.30 | 288.34 | 0.9243 | -674.0 | -485.7 | |
| 0.00 | 1.54 | 0.00 | 1.99 | 18.79 | 355.29 | 67.35 | 288.86 | 0.9248 | 261.0 | 158.4 | |
| 0.00 | 1.45 | 0.00 | 1.53 | 16.11 | 349.67 | 61.73 | 286.34 | 0.8837 | 331.0 | 269.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
