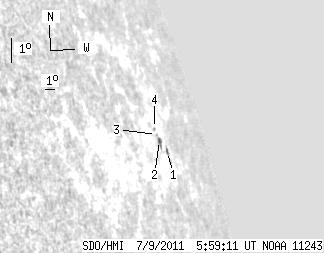

SDO HMI 2011-07-09 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.91 | 8.45 | 4.24 | 19.02 | 17.06 | 355.29 | 77.85 | 286.66 | 0.9765 | -235.2 | -151.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-09 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.54 | 0.00 | 5.95 | 16.73 | 355.80 | 78.35 | 286.32 | 0.9783 | 210.0 | 132.8 | |
| 1.91 | 4.18 | 4.24 | 9.28 | 17.12 | 355.11 | 77.67 | 286.72 | 0.9759 | -302.3 | -388.3 | |
| 0.00 | 0.64 | 0.00 | 1.40 | 17.32 | 354.95 | 77.50 | 286.93 | 0.9752 | -330.0 | -274.0 | |
| 0.00 | 1.09 | 0.00 | 2.39 | 17.51 | 354.93 | 77.48 | 287.13 | 0.9752 | -301.0 | -285.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
