SDO HMI 2011-07-14 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.20 | 266.12 | 26.29 | 165.80 | 16.21 | 169.81 | -35.97 | 68.59 | 0.6080 | -987.2 | -341.1 | |
|
previous
or next observation for the same group /

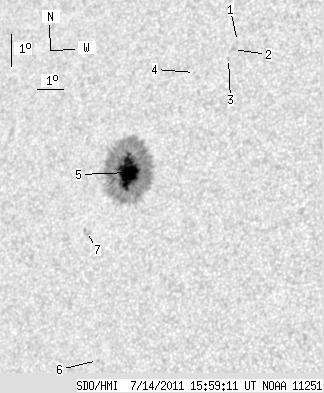

back to the solar disc SDO HMI 2011-07-14 15:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.55 | 20.48 | 173.06 | -32.71 | 60.14 | 0.5859 | -686.0 | -591.7 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 20.22 | 172.97 | -32.80 | 60.60 | 0.5857 | -723.0 | -630.9 | |
| 0.00 | 1.09 | 0.00 | 0.66 | 19.93 | 172.85 | -32.93 | 61.14 | 0.5856 | -641.0 | -557.0 | |
| 0.00 | 0.64 | 0.00 | 0.39 | 19.44 | 171.64 | -34.13 | 62.61 | 0.5981 | -491.0 | -373.6 | |
| 42.20 | 256.77 | 26.29 | 160.02 | 16.21 | 169.79 | -35.99 | 68.61 | 0.6082 | -1072.3 | -333.6 | |
| 0.00 | 1.27 | 0.00 | 0.78 | 10.38 | 169.59 | -36.18 | 78.23 | 0.5954 | -664.0 | -442.5 | |
| 0.00 | 3.99 | 0.00 | 2.51 | 14.32 | 168.52 | -37.26 | 72.09 | 0.6187 | -482.0 | -491.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
