SDO HMI 2011-07-14 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.03 | 252.93 | 22.15 | 155.48 | 16.28 | 169.82 | -34.85 | 68.02 | 0.5937 | -1002.1 | -383.0 | |
|
previous
or next observation for the same group /

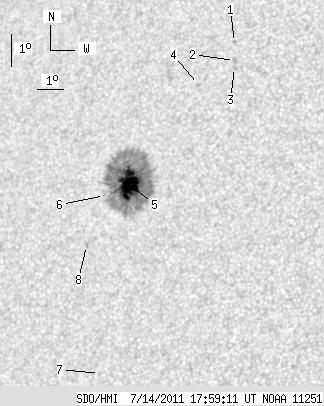

back to the solar disc SDO HMI 2011-07-14 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.15 | 20.81 | 172.81 | -31.86 | 59.09 | 0.5772 | -642.0 | -541.3 | |
| 0.00 | 2.63 | 0.00 | 1.59 | 20.24 | 172.94 | -31.72 | 59.91 | 0.5724 | -739.0 | -616.1 | |
| 0.00 | 1.63 | 0.00 | 0.98 | 20.02 | 172.99 | -31.67 | 60.24 | 0.5705 | -771.0 | -627.6 | |
| 0.00 | 1.82 | 0.00 | 1.10 | 19.43 | 171.74 | -32.92 | 61.95 | 0.5829 | -572.0 | -464.5 | |
| 36.03 | 241.67 | 22.15 | 148.65 | 16.20 | 169.74 | -34.93 | 68.20 | 0.5943 | -1130.9 | -375.4 | |
| 0.00 | 0.73 | 0.00 | 0.45 | 15.82 | 168.88 | -35.78 | 69.17 | 0.6041 | -199.0 | -205.1 | |
| 0.00 | 1.18 | 0.00 | 0.72 | 10.34 | 169.60 | -35.07 | 78.07 | 0.5798 | -545.0 | -415.8 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 14.25 | 168.48 | -36.18 | 71.86 | 0.6043 | -695.0 | -555.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
