SDO HMI 2011-07-14 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.56 | 269.52 | 24.02 | 164.31 | 16.45 | 169.51 | -34.04 | 67.40 | 0.5836 | -668.7 | -344.0 | |
|
previous
or next observation for the same group /

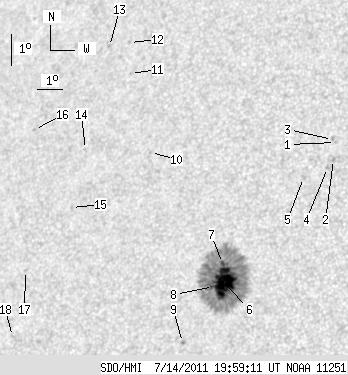

back to the solar disc SDO HMI 2011-07-14 19:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.54 | 20.74 | 173.01 | -30.54 | 58.32 | 0.5606 | -764.0 | -579.7 | |
| 0.00 | 2.00 | 0.00 | 1.19 | 20.20 | 173.06 | -30.50 | 59.17 | 0.5568 | -869.0 | -722.2 | |
| 0.00 | 1.00 | 0.00 | 0.60 | 20.83 | 172.88 | -30.67 | 58.26 | 0.5628 | -754.0 | -608.4 | |
| 0.00 | 2.09 | 0.00 | 1.24 | 19.94 | 172.89 | -30.67 | 59.72 | 0.5574 | -814.0 | -587.9 | |
| 0.00 | 2.00 | 0.00 | 1.20 | 19.59 | 172.05 | -31.50 | 60.84 | 0.5658 | -682.0 | -529.6 | |
| 37.11 | 249.55 | 22.53 | 151.55 | 16.19 | 169.75 | -33.80 | 67.73 | 0.5795 | -1142.3 | -377.8 | |
| 1.54 | -6.00 | 0.94 | -6.00 | 16.78 | 169.56 | -34.00 | 66.84 | 0.5844 | -754.5 | 999999 | |
| 0.91 | -6.00 | 0.55 | -6.00 | 16.05 | 169.35 | -34.20 | 68.14 | 0.5842 | -656.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 14.27 | 168.50 | -35.06 | 71.44 | 0.5894 | -685.0 | -619.1 | |
| 0.00 | 0.45 | 0.00 | 0.29 | 20.13 | 165.88 | -37.67 | 63.34 | 0.6443 | 679.0 | 583.2 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 22.60 | 164.27 | -39.28 | 60.54 | 0.6736 | 579.0 | 430.7 | |
| 0.00 | 0.91 | 0.00 | 0.61 | 23.59 | 163.88 | -39.67 | 59.35 | 0.6823 | 547.0 | 453.5 | |
| 0.00 | 1.45 | 0.00 | 0.99 | 23.42 | 163.07 | -40.48 | 59.96 | 0.6905 | 497.0 | 559.5 | |
| 0.00 | 1.00 | 0.00 | 0.67 | 20.11 | 163.17 | -40.39 | 64.54 | 0.6762 | 514.0 | 457.6 | |
| 0.00 | 1.81 | 0.00 | 1.21 | 18.26 | 163.12 | -40.43 | 67.20 | 0.6703 | 661.0 | 387.9 | |
| 0.00 | 1.00 | 0.00 | 0.70 | 20.63 | 160.77 | -42.78 | 64.71 | 0.7054 | 507.0 | 415.6 | |
| 0.00 | 1.36 | 0.00 | 0.92 | 16.21 | 161.72 | -41.83 | 70.62 | 0.6812 | 593.0 | 490.5 | |
| 0.00 | 1.63 | 0.00 | 1.10 | 14.15 | 161.68 | -41.88 | 73.63 | 0.6769 | 704.0 | 487.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
