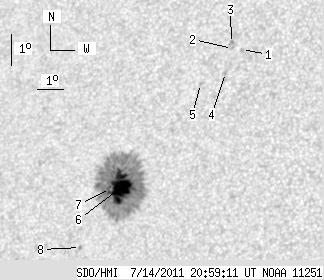

SDO HMI 2011-07-14 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.93 | 261.80 | 23.48 | 157.89 | 16.35 | 169.81 | -33.19 | 67.17 | 0.5722 | -1045.8 | -396.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-14 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.75 | 20.71 | 173.37 | -29.63 | 57.71 | 0.5491 | -740.0 | -620.9 | |
| 0.00 | 1.63 | 0.00 | 0.97 | 20.73 | 173.03 | -29.97 | 57.93 | 0.5535 | -576.0 | -470.4 | |
| 0.00 | 2.36 | 0.00 | 1.40 | 20.89 | 172.95 | -30.04 | 57.73 | 0.5554 | -677.0 | -579.1 | |
| 0.00 | 2.63 | 0.00 | 1.56 | 19.96 | 172.93 | -30.07 | 59.27 | 0.5500 | -761.0 | -610.6 | |
| 0.00 | 1.09 | 0.00 | 0.65 | 19.58 | 172.07 | -30.93 | 60.49 | 0.5586 | -730.0 | -577.8 | |
| 37.39 | 251.46 | 22.55 | 151.73 | 16.22 | 169.72 | -33.28 | 67.44 | 0.5726 | -1155.6 | -387.4 | |
| 1.54 | -6.00 | 0.93 | -6.00 | 16.17 | 169.35 | -33.65 | 67.70 | 0.5774 | -614.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 14.30 | 168.55 | -34.45 | 71.17 | 0.5813 | -717.0 | -604.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
