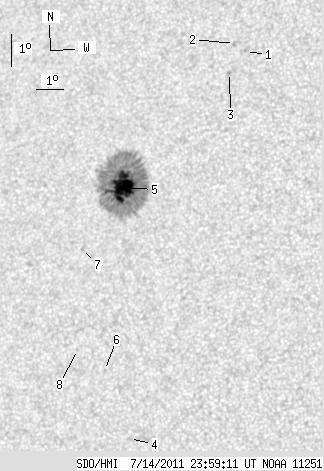

SDO HMI 2011-07-14 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.03 | 274.84 | 23.13 | 162.88 | 16.18 | 169.72 | -31.62 | 66.70 | 0.5505 | -1054.1 | -383.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-14 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.42 | 20.64 | 173.39 | -27.95 | 56.56 | 0.5276 | -503.0 | -539.6 | |
| 0.00 | 2.00 | 0.00 | 1.17 | 20.87 | 172.94 | -28.40 | 56.52 | 0.5349 | -691.0 | -607.4 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 19.95 | 172.94 | -28.40 | 58.08 | 0.5288 | -849.0 | -687.1 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 8.51 | 170.95 | -30.38 | 80.49 | 0.5092 | -657.0 | -476.6 | |
| 39.03 | 265.12 | 23.13 | 157.19 | 16.21 | 169.68 | -31.66 | 66.67 | 0.5510 | -1173.2 | -377.0 | |
| 0.00 | 0.64 | 0.00 | 0.37 | 10.55 | 169.85 | -31.49 | 76.85 | 0.5294 | -710.0 | -549.0 | |
| 0.00 | 2.36 | 0.00 | 1.41 | 14.27 | 168.52 | -32.82 | 70.61 | 0.5590 | -621.0 | -473.1 | |
| 0.00 | 1.18 | 0.00 | 0.70 | 11.16 | 168.78 | -32.56 | 76.05 | 0.5461 | -593.0 | -422.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
