SDO HMI 2011-07-15 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.46 | 264.41 | 25.76 | 143.60 | 16.29 | 169.49 | -21.39 | 58.82 | 0.4109 | -1170.3 | -419.5 | |
|
previous
or next observation for the same group /

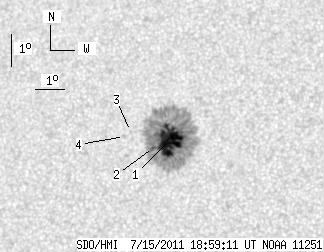

back to the solar disc SDO HMI 2011-07-15 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.19 | 261.60 | 25.07 | 142.05 | 16.29 | 169.52 | -21.36 | 58.78 | 0.4105 | -1239.1 | -421.4 | |
| 1.27 | -1.00 | 0.69 | -1.00 | 16.05 | 169.00 | -21.88 | 59.84 | 0.4159 | -618.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 16.53 | 168.15 | -22.72 | 59.67 | 0.4308 | -589.0 | -348.2 | |
| 0.00 | 1.81 | 0.00 | 1.00 | 16.37 | 167.96 | -22.91 | 60.19 | 0.4323 | -410.0 | -240.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
