SDO HMI 2011-07-15 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.14 | 62.71 | 21.74 | 55.40 | -22.66 | 139.13 | -50.08 | 121.29 | 0.8291 | 193.6 | 232.0 | |
|
previous
or next observation for the same group /

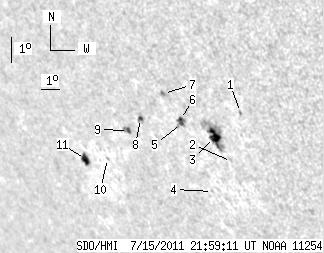

back to the solar disc SDO HMI 2011-07-15 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.18 | -21.64 | 142.91 | -46.31 | 121.80 | 0.7929 | 614.0 | 602.6 | |
| 0.00 | 0.82 | 0.00 | 0.69 | -23.37 | 141.70 | -47.51 | 123.19 | 0.8111 | 508.0 | 426.4 | |
| 11.52 | 31.49 | 9.73 | 26.52 | -22.58 | 141.23 | -47.98 | 122.08 | 0.8118 | 743.6 | 460.7 | |
| 0.00 | 0.82 | 0.00 | 0.72 | -24.49 | 140.18 | -49.03 | 123.73 | 0.8283 | 301.0 | 220.2 | |
| 1.63 | 6.62 | 1.42 | 5.75 | -22.20 | 139.75 | -49.46 | 120.99 | 0.8229 | 580.0 | 334.0 | |
| 1.36 | -5.00 | 1.18 | -5.00 | -22.06 | 139.77 | -49.44 | 120.84 | 0.8223 | 448.5 | 999999 | |
| 0.00 | 2.99 | 0.00 | 2.60 | -21.22 | 139.30 | -49.91 | 119.69 | 0.8231 | 674.0 | 420.5 | |
| 2.00 | 4.54 | 1.81 | 4.12 | -22.16 | 137.64 | -51.57 | 120.06 | 0.8404 | -644.3 | -398.6 | |
| 2.09 | 4.81 | 1.94 | 4.49 | -22.62 | 136.75 | -52.47 | 120.22 | 0.8492 | -653.3 | -526.7 | |
| 0.00 | 1.18 | 0.00 | 1.16 | -23.69 | 134.95 | -54.26 | 120.70 | 0.8664 | -613.0 | -521.2 | |
| 5.54 | 7.99 | 5.66 | 8.17 | -23.81 | 133.59 | -55.62 | 120.34 | 0.8768 | -435.2 | -147.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
