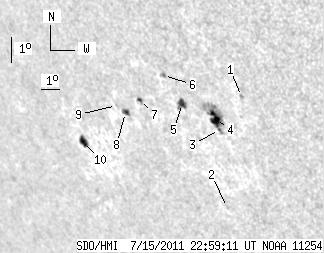

SDO HMI 2011-07-15 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.05 | 61.99 | 23.18 | 53.90 | -22.68 | 139.33 | -49.33 | 121.64 | 0.8229 | 162.8 | 327.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-15 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.60 | -21.71 | 142.88 | -45.77 | 122.13 | 0.7884 | 675.0 | 615.3 | |
| 0.00 | 1.09 | 0.00 | 0.96 | -25.66 | 140.32 | -48.33 | 125.33 | 0.8276 | 218.0 | 205.3 | |
| 0.91 | 33.30 | 0.76 | 27.76 | -22.91 | 141.30 | -47.36 | 122.75 | 0.8078 | 481.4 | 483.9 | |
| 9.44 | -3.00 | 7.88 | -3.00 | -22.58 | 141.26 | -47.40 | 122.35 | 0.8067 | 774.1 | 999999 | |
| 4.81 | 7.53 | 4.11 | 6.45 | -22.12 | 139.83 | -48.83 | 121.18 | 0.8172 | 528.2 | 319.4 | |
| 0.73 | 2.18 | 0.62 | 1.87 | -21.21 | 139.29 | -49.36 | 119.92 | 0.8184 | 471.8 | 464.6 | |
| 1.54 | 3.18 | 1.38 | 2.85 | -22.12 | 137.62 | -51.04 | 120.24 | 0.8359 | -593.4 | -547.8 | |
| 2.99 | 3.63 | 2.76 | 3.35 | -22.62 | 136.61 | -52.04 | 120.39 | 0.8458 | -669.1 | -537.9 | |
| 0.00 | 1.09 | 0.00 | 1.01 | -22.41 | 136.24 | -52.42 | 120.01 | 0.8481 | -424.0 | -356.1 | |
| 5.63 | 7.99 | 5.67 | 8.05 | -23.81 | 133.56 | -55.10 | 120.52 | 0.8730 | -435.5 | -100.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
