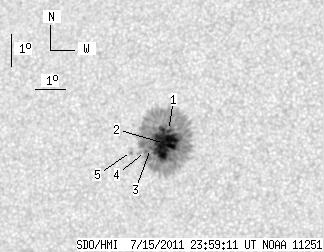

SDO HMI 2011-07-15 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.28 | 282.24 | 24.70 | 150.70 | 16.30 | 169.44 | -18.66 | 55.60 | 0.3739 | -1210.2 | -419.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-15 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.91 | 279.34 | 1.02 | 149.14 | 16.71 | 169.58 | -18.53 | 54.49 | 0.3755 | -1007.0 | -416.2 | |
| 42.65 | -1.00 | 22.76 | -1.00 | 16.30 | 169.48 | -18.62 | 55.54 | 0.3733 | -1277.1 | 999999 | |
| 0.36 | -1.00 | 0.19 | -1.00 | 16.13 | 169.03 | -19.08 | 56.52 | 0.3780 | -810.0 | 999999 | |
| 1.36 | -1.00 | 0.73 | -1.00 | 16.03 | 168.87 | -19.23 | 56.94 | 0.3794 | -563.5 | 999999 | |
| 0.00 | 2.90 | 0.00 | 1.56 | 16.02 | 168.40 | -19.70 | 57.55 | 0.3857 | -843.0 | -658.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
