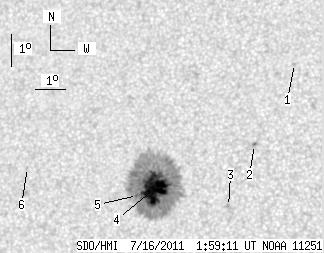

SDO HMI 2011-07-16 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.66 | 281.76 | 23.15 | 149.52 | 16.32 | 169.49 | -17.52 | 53.97 | 0.3586 | -1151.0 | -436.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-16 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.48 | 20.32 | 173.78 | -13.23 | 37.84 | 0.3513 | -822.0 | -568.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 17.75 | 172.67 | -14.34 | 45.32 | 0.3331 | -853.0 | -675.9 | |
| 0.00 | 2.18 | 0.00 | 1.14 | 15.80 | 171.97 | -15.04 | 51.27 | 0.3214 | -1008.0 | -677.8 | |
| 43.39 | 276.58 | 23.01 | 146.78 | 16.31 | 169.48 | -17.53 | 54.02 | 0.3587 | -1290.0 | -435.5 | |
| 0.27 | -4.00 | 0.14 | -4.00 | 16.08 | 168.93 | -18.07 | 55.34 | 0.3639 | -593.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.40 | 16.85 | 165.13 | -21.88 | 58.21 | 0.4213 | 641.0 | 413.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
