SDO HMI 2011-07-16 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.59 | 58.20 | 21.95 | 49.15 | -22.70 | 139.11 | -47.89 | 122.34 | 0.8109 | 262.0 | 138.2 | |
|
previous
or next observation for the same group /

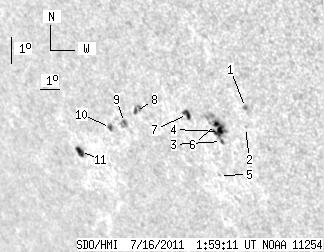

back to the solar disc SDO HMI 2011-07-16 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.70 | -21.74 | 142.88 | -44.12 | 123.02 | 0.7735 | 800.0 | 697.8 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -22.43 | 142.61 | -44.40 | 123.68 | 0.7794 | 555.0 | 457.9 | |
| 0.54 | 28.96 | 0.44 | 23.39 | -22.98 | 141.24 | -45.76 | 123.62 | 0.7942 | 499.2 | 439.4 | |
| 7.72 | -3.00 | 6.23 | -3.00 | -22.64 | 141.30 | -45.70 | 123.25 | 0.7922 | 799.1 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.98 | -24.18 | 140.60 | -46.40 | 124.65 | 0.8053 | 565.0 | 412.3 | |
| 2.72 | -3.00 | 2.20 | -3.00 | -22.40 | 141.26 | -45.75 | 122.96 | 0.7915 | 881.4 | 999999 | |
| 4.63 | 5.17 | 3.82 | 4.27 | -22.14 | 139.98 | -47.02 | 122.04 | 0.8017 | 588.2 | 474.3 | |
| 1.72 | 5.36 | 1.50 | 4.65 | -22.19 | 137.37 | -49.64 | 120.92 | 0.8245 | -583.5 | -628.8 | |
| 1.54 | 4.72 | 1.37 | 4.21 | -22.61 | 136.59 | -50.41 | 121.06 | 0.8326 | -729.7 | -634.4 | |
| 2.00 | 3.00 | 1.82 | 2.72 | -22.84 | 135.74 | -51.26 | 120.95 | 0.8404 | -542.5 | -536.4 | |
| 4.72 | 6.81 | 4.57 | 6.59 | -23.79 | 133.56 | -53.44 | 121.14 | 0.8607 | -468.6 | -224.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
