SDO HMI 2011-07-16 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.48 | 298.44 | 26.56 | 157.57 | 16.65 | 169.10 | -16.26 | 51.32 | 0.3448 | -708.7 | -352.9 | |
|
previous
or next observation for the same group /

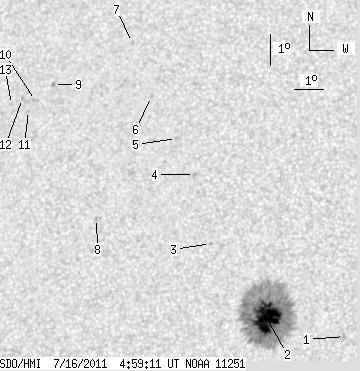

back to the solar disc SDO HMI 2011-07-16 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.82 | 0.00 | 0.94 | 15.79 | 172.05 | -13.31 | 48.04 | 0.2992 | -932.0 | -638.3 | |
| 50.48 | 281.55 | 26.56 | 148.16 | 16.33 | 169.45 | -15.91 | 51.49 | 0.3376 | -1287.3 | -415.0 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 18.60 | 167.36 | -18.00 | 49.66 | 0.3858 | 804.0 | 633.6 | |
| 0.00 | 0.91 | 0.00 | 0.49 | 20.77 | 166.56 | -18.80 | 46.56 | 0.4168 | 981.0 | 813.7 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 21.90 | 165.78 | -19.58 | 45.59 | 0.4371 | 761.0 | 572.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 23.22 | 164.70 | -20.66 | 44.77 | 0.4623 | 716.0 | 526.3 | |
| 0.00 | 1.18 | 0.00 | 0.67 | 24.95 | 163.72 | -21.64 | 43.23 | 0.4901 | 717.0 | 581.0 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 19.29 | 163.36 | -22.00 | 53.45 | 0.4418 | 795.0 | 671.4 | |
| 0.00 | 2.00 | 0.00 | 1.14 | 23.51 | 161.12 | -24.24 | 48.47 | 0.5048 | 715.0 | 603.4 | |
| 0.00 | 2.27 | 0.00 | 1.30 | 22.97 | 160.57 | -24.79 | 49.92 | 0.5065 | 281.0 | 366.1 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 22.64 | 160.38 | -24.98 | 50.65 | 0.5060 | 701.0 | 577.1 | |
| 0.00 | 1.27 | 0.00 | 0.73 | 23.02 | 160.08 | -25.27 | 50.33 | 0.5125 | 745.0 | 642.1 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 22.82 | 159.72 | -25.64 | 51.02 | 0.5150 | 580.0 | 444.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
