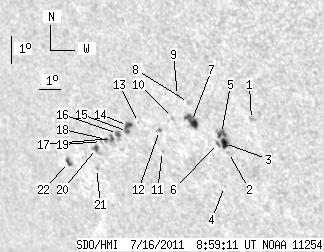

SDO HMI 2011-07-16 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.31 | 71.19 | 29.73 | 56.69 | -22.60 | 138.32 | -44.85 | 123.72 | 0.7839 | 78.5 | -35.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-16 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.81 | 0.00 | 2.06 | -21.82 | 142.82 | -40.34 | 125.28 | 0.7384 | 777.0 | 655.6 | |
| 0.00 | 0.91 | 0.00 | 0.69 | -23.02 | 141.38 | -41.79 | 125.83 | 0.7587 | 514.0 | 412.9 | |
| 4.72 | 16.43 | 3.57 | 12.42 | -22.71 | 141.32 | -41.85 | 125.44 | 0.7576 | 835.1 | 647.9 | |
| 0.00 | 0.91 | 0.00 | 0.70 | -24.22 | 140.72 | -42.44 | 126.83 | 0.7712 | 533.0 | 375.3 | |
| 4.81 | -3.00 | 3.63 | -3.00 | -22.37 | 141.31 | -41.85 | 125.04 | 0.7558 | 743.2 | 999999 | |
| 1.09 | -3.00 | 0.83 | -3.00 | -22.73 | 141.00 | -42.17 | 125.27 | 0.7607 | 356.8 | 999999 | |
| 9.35 | 11.08 | 7.17 | 8.49 | -22.03 | 140.10 | -43.07 | 123.95 | 0.7654 | 626.3 | 433.7 | |
| 0.00 | 1.36 | 0.00 | 1.04 | -21.39 | 140.20 | -42.96 | 123.25 | 0.7611 | 547.0 | 434.3 | |
| 0.00 | 1.82 | 0.00 | 1.39 | -21.17 | 139.79 | -43.38 | 122.78 | 0.7640 | 542.0 | 374.9 | |
| 0.00 | 1.36 | 0.00 | 1.06 | -21.94 | 139.27 | -43.90 | 123.40 | 0.7727 | 239.0 | 259.6 | |
| 0.00 | 0.64 | 0.00 | 0.51 | -23.15 | 138.31 | -44.86 | 124.29 | 0.7872 | -547.0 | -523.0 | |
| 0.73 | 1.63 | 0.58 | 1.29 | -22.43 | 138.47 | -44.70 | 123.55 | 0.7823 | 384.0 | 140.2 | |
| 0.00 | 0.73 | 0.00 | 0.58 | -22.21 | 137.58 | -45.59 | 122.84 | 0.7894 | -653.0 | -622.4 | |
| 3.36 | 6.81 | 2.73 | 5.54 | -22.35 | 137.00 | -46.17 | 122.71 | 0.7952 | -738.7 | -732.2 | |
| 0.82 | -14.00 | 0.67 | -14.00 | -22.55 | 136.91 | -46.26 | 122.90 | 0.7969 | -794.3 | 999999 | |
| 2.91 | 5.63 | 2.40 | 4.65 | -22.65 | 136.38 | -46.79 | 122.76 | 0.8020 | -681.2 | -563.0 | |
| 2.72 | 7.45 | 2.27 | 6.22 | -22.84 | 136.00 | -47.16 | 122.79 | 0.8061 | -620.2 | -535.6 | |
| 1.45 | -17.00 | 1.22 | -17.00 | -22.89 | 135.73 | -47.43 | 122.72 | 0.8086 | -615.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 1.07 | -22.98 | 135.45 | -47.72 | 122.68 | 0.8115 | -438.0 | -413.6 | |
| 2.63 | 5.45 | 2.24 | 4.65 | -23.24 | 135.08 | -48.09 | 122.80 | 0.8157 | -658.8 | -596.6 | |
| 0.00 | 1.18 | 0.00 | 1.02 | -23.95 | 134.73 | -48.44 | 123.43 | 0.8216 | -354.0 | -396.8 | |
| 2.72 | 3.72 | 2.42 | 3.31 | -23.82 | 133.36 | -49.81 | 122.68 | 0.8324 | -377.0 | -462.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
