SDO HMI 2011-07-16 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.32 | 93.42 | 23.13 | 73.17 | -22.78 | 137.69 | -43.83 | 124.47 | 0.7757 | -76.2 | -59.6 | |
|
previous
or next observation for the same group /

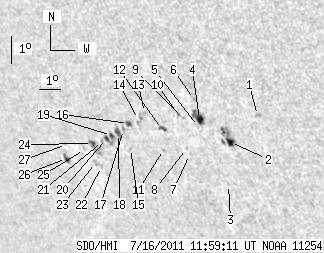

back to the solar disc SDO HMI 2011-07-16 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.68 | -21.80 | 142.85 | -38.67 | 126.30 | 0.7221 | 674.0 | 582.6 | |
| 4.54 | 16.43 | 3.34 | 12.10 | -22.79 | 141.36 | -40.16 | 126.54 | 0.7423 | 806.6 | 680.5 | |
| 0.00 | 0.82 | 0.00 | 0.62 | -24.26 | 140.72 | -40.80 | 127.86 | 0.7567 | 480.0 | 395.2 | |
| 5.17 | 11.17 | 3.85 | 8.31 | -22.07 | 140.27 | -41.25 | 125.03 | 0.7485 | 744.9 | 521.9 | |
| 0.00 | 1.27 | 0.00 | 0.95 | -22.31 | 140.14 | -41.38 | 125.24 | 0.7511 | 228.0 | 346.9 | |
| 0.00 | 1.36 | 0.00 | 1.01 | -21.39 | 140.29 | -41.23 | 124.24 | 0.7446 | 646.0 | 522.3 | |
| 0.00 | 0.45 | 0.00 | 0.35 | -23.31 | 139.36 | -42.16 | 125.95 | 0.7637 | 378.0 | 357.0 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -23.10 | 139.30 | -42.22 | 125.68 | 0.7631 | 407.0 | 354.3 | |
| 0.00 | 1.27 | 0.00 | 0.96 | -22.04 | 139.53 | -41.99 | 124.57 | 0.7554 | 306.0 | 273.8 | |
| 0.00 | 1.54 | 0.00 | 1.16 | -21.95 | 139.38 | -42.13 | 124.38 | 0.7562 | 371.0 | 280.4 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -23.20 | 138.22 | -43.30 | 125.18 | 0.7735 | -430.0 | -427.1 | |
| 2.09 | 3.27 | 1.61 | 2.52 | -22.50 | 138.45 | -43.06 | 124.51 | 0.7678 | 302.8 | 82.3 | |
| 0.00 | 1.72 | 0.00 | 1.34 | -21.96 | 137.85 | -43.67 | 123.55 | 0.7707 | -377.0 | -364.4 | |
| 0.00 | 3.45 | 0.00 | 2.69 | -22.22 | 137.47 | -44.05 | 123.65 | 0.7754 | -424.0 | -632.9 | |
| 0.00 | 0.91 | 0.00 | 0.73 | -23.25 | 136.67 | -44.85 | 124.41 | 0.7876 | 200.0 | 237.7 | |
| 2.63 | 3.00 | 2.08 | 2.37 | -22.39 | 136.94 | -44.58 | 123.56 | 0.7811 | -756.9 | -675.5 | |
| 0.00 | 3.36 | 0.00 | 2.67 | -22.61 | 136.62 | -44.90 | 123.65 | 0.7851 | -748.0 | -614.2 | |
| 3.72 | 6.35 | 2.98 | 5.09 | -22.76 | 136.32 | -45.20 | 123.67 | 0.7885 | -621.0 | -509.4 | |
| 2.00 | 9.62 | 1.61 | 7.80 | -22.85 | 135.95 | -45.57 | 123.59 | 0.7922 | -577.2 | -554.5 | |
| 2.36 | -19.00 | 1.92 | -19.00 | -22.97 | 135.66 | -45.86 | 123.58 | 0.7953 | -559.3 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.49 | -23.09 | 135.42 | -46.10 | 123.59 | 0.7979 | -408.0 | -445.2 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -23.97 | 134.96 | -46.56 | 124.36 | 0.8058 | -559.0 | -528.7 | |
| 0.00 | 2.27 | 0.00 | 1.90 | -23.85 | 134.73 | -46.79 | 124.10 | 0.8073 | -533.0 | -484.6 | |
| 3.36 | 11.08 | 2.78 | 9.15 | -23.19 | 134.89 | -46.63 | 123.44 | 0.8030 | -668.7 | -592.6 | |
| 0.00 | 1.09 | 0.00 | 0.91 | -23.42 | 134.39 | -47.13 | 123.46 | 0.8083 | -586.0 | -466.6 | |
| 3.45 | 4.99 | 2.96 | 4.29 | -23.79 | 133.32 | -48.20 | 123.37 | 0.8190 | -384.4 | -244.1 | |
| 0.00 | 1.00 | 0.00 | 0.85 | -23.30 | 133.56 | -47.96 | 122.93 | 0.8149 | -382.0 | -350.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
