SDO HMI 2011-07-16 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.95 | 102.12 | 21.39 | 78.18 | -22.81 | 137.90 | -42.51 | 125.25 | 0.7638 | -24.1 | -78.1 | |
|
previous
or next observation for the same group /

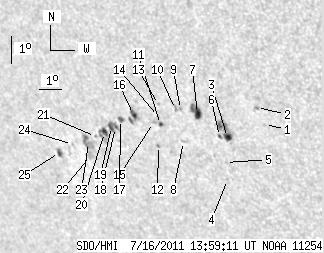

back to the solar disc SDO HMI 2011-07-16 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.83 | -22.30 | 143.10 | -37.31 | 127.81 | 0.7121 | 599.0 | 541.3 | |
| 0.00 | 1.72 | 0.00 | 1.21 | -21.73 | 142.95 | -37.47 | 127.02 | 0.7100 | 734.0 | 591.4 | |
| 4.08 | 21.06 | 2.96 | 15.24 | -22.83 | 141.37 | -39.04 | 127.29 | 0.7320 | 816.1 | 642.2 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -24.30 | 140.84 | -39.57 | 128.66 | 0.7458 | 481.0 | 388.9 | |
| 0.00 | 0.73 | 0.00 | 0.53 | -23.71 | 140.98 | -39.44 | 128.06 | 0.7410 | 520.0 | 403.2 | |
| 0.91 | -3.00 | 0.66 | -3.00 | -22.81 | 141.04 | -39.38 | 127.06 | 0.7351 | 380.5 | 999999 | |
| 5.81 | 10.80 | 4.24 | 7.89 | -22.07 | 140.35 | -40.07 | 125.74 | 0.7373 | 793.8 | 570.9 | |
| 0.00 | 2.00 | 0.00 | 1.49 | -23.07 | 139.38 | -41.04 | 126.34 | 0.7521 | 537.0 | 383.4 | |
| 0.00 | 1.09 | 0.00 | 0.80 | -21.97 | 139.64 | -40.77 | 125.20 | 0.7434 | 599.0 | 417.3 | |
| 0.00 | 2.00 | 0.00 | 1.48 | -21.98 | 139.42 | -40.99 | 125.08 | 0.7456 | 434.0 | 302.6 | |
| 1.36 | 2.36 | 1.03 | 1.78 | -22.54 | 138.56 | -41.86 | 125.23 | 0.7568 | 342.1 | 344.1 | |
| 0.00 | 1.18 | 0.00 | 0.90 | -23.27 | 138.19 | -42.23 | 125.87 | 0.7642 | -192.0 | -325.9 | |
| 0.00 | 1.00 | 0.00 | 0.75 | -21.85 | 138.72 | -41.69 | 124.52 | 0.7515 | 398.0 | 246.4 | |
| 0.00 | 0.82 | 0.00 | 0.62 | -22.26 | 138.57 | -41.84 | 124.92 | 0.7552 | 181.0 | 153.6 | |
| 0.00 | 1.36 | 0.00 | 1.03 | -22.48 | 138.27 | -42.15 | 125.00 | 0.7592 | -113.0 | -96.7 | |
| 3.27 | 8.71 | 2.51 | 6.69 | -22.26 | 137.46 | -42.96 | 124.28 | 0.7656 | -709.3 | -551.5 | |
| 2.36 | 3.09 | 1.83 | 2.40 | -22.46 | 136.78 | -43.63 | 124.16 | 0.7728 | -719.5 | -586.2 | |
| 0.36 | 8.62 | 0.28 | 6.77 | -22.76 | 136.44 | -43.98 | 124.31 | 0.7774 | -796.5 | -659.8 | |
| 4.18 | -18.00 | 3.29 | -18.00 | -22.73 | 136.26 | -44.15 | 124.18 | 0.7789 | -645.5 | 999999 | |
| 2.81 | 11.62 | 2.23 | 9.24 | -22.96 | 135.84 | -44.57 | 124.23 | 0.7838 | -713.5 | -502.7 | |
| 0.00 | 1.00 | 0.00 | 0.80 | -23.12 | 135.35 | -45.06 | 124.16 | 0.7890 | -572.0 | -469.7 | |
| 0.00 | 3.99 | 0.00 | 3.26 | -23.81 | 134.81 | -45.60 | 124.65 | 0.7969 | -707.0 | -603.5 | |
| 0.00 | 11.53 | 0.00 | 9.35 | -23.35 | 134.92 | -45.50 | 124.20 | 0.7939 | -775.0 | -615.4 | |
| 0.00 | 1.00 | 0.00 | 0.82 | -23.47 | 134.10 | -46.32 | 123.92 | 0.8015 | -531.0 | -472.0 | |
| 2.81 | 4.08 | 2.36 | 3.43 | -23.79 | 133.32 | -47.10 | 123.89 | 0.8097 | -444.0 | -409.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
