SDO HMI 2011-07-16 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.76 | 98.30 | 24.12 | 74.73 | -22.82 | 137.78 | -42.08 | 125.50 | 0.7599 | -46.6 | -116.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-16 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

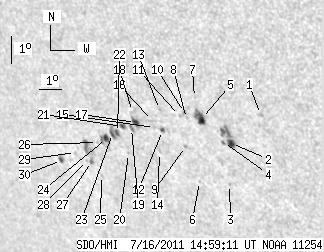

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 1.14 | -21.77 | 142.96 | -36.90 | 127.45 | 0.7047 | 814.0 | 640.3 | |
| 4.81 | 14.70 | 3.46 | 10.55 | -22.83 | 141.41 | -38.45 | 127.68 | 0.7264 | 781.9 | 713.3 | |
| 0.00 | 1.09 | 0.00 | 0.80 | -24.27 | 140.82 | -39.04 | 128.97 | 0.7408 | 579.0 | 480.5 | |
| 1.18 | 1.82 | 0.85 | 1.31 | -22.81 | 141.08 | -38.78 | 127.44 | 0.7295 | 422.8 | 353.1 | |
| 5.72 | 10.80 | 4.14 | 7.82 | -22.03 | 140.41 | -39.46 | 126.09 | 0.7312 | 777.4 | 524.8 | |
| 0.00 | 0.54 | 0.00 | 0.41 | -24.23 | 139.53 | -40.33 | 128.11 | 0.7524 | 396.0 | 280.0 | |
| 0.00 | 0.64 | 0.00 | 0.46 | -21.33 | 140.34 | -39.52 | 125.20 | 0.7277 | 626.0 | 552.4 | |
| 0.00 | 0.82 | 0.00 | 0.60 | -22.07 | 139.75 | -40.11 | 125.72 | 0.7377 | 331.0 | 241.2 | |
| 0.00 | 1.00 | 0.00 | 0.74 | -23.04 | 139.36 | -40.50 | 126.63 | 0.7470 | 543.0 | 442.5 | |
| 0.00 | 2.09 | 0.00 | 1.52 | -21.87 | 139.73 | -40.13 | 125.47 | 0.7367 | 588.0 | 434.0 | |
| 0.00 | 0.91 | 0.00 | 0.67 | -21.98 | 139.48 | -40.38 | 125.45 | 0.7398 | 395.0 | 252.9 | |
| 1.63 | 2.09 | 1.22 | 1.56 | -22.54 | 138.54 | -41.33 | 125.55 | 0.7519 | 303.3 | 137.4 | |
| 0.00 | 1.27 | 0.00 | 0.94 | -21.82 | 138.66 | -41.20 | 124.77 | 0.7467 | 451.0 | 254.5 | |
| 0.00 | 0.64 | 0.00 | 0.48 | -23.31 | 138.11 | -41.75 | 126.20 | 0.7600 | -600.0 | -515.9 | |
| 0.00 | 1.27 | 0.00 | 0.96 | -22.46 | 138.21 | -41.65 | 125.26 | 0.7544 | -172.0 | -115.1 | |
| 0.00 | 2.99 | 0.00 | 2.25 | -22.22 | 138.21 | -41.65 | 124.98 | 0.7531 | -184.0 | -198.5 | |
| 4.08 | 6.90 | 3.11 | 5.25 | -22.33 | 137.41 | -42.45 | 124.65 | 0.7612 | -731.4 | -570.2 | |
| 0.00 | 2.18 | 0.00 | 1.65 | -21.96 | 137.42 | -42.44 | 124.22 | 0.7592 | -325.0 | -390.0 | |
| 0.00 | 2.99 | 0.00 | 2.29 | -22.55 | 137.15 | -42.71 | 124.76 | 0.7648 | -729.0 | -557.4 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -23.43 | 136.67 | -43.20 | 125.50 | 0.7738 | 398.0 | 306.4 | |
| 2.72 | 3.45 | 2.10 | 2.66 | -22.50 | 136.76 | -43.10 | 124.49 | 0.7681 | -709.2 | -483.0 | |
| 2.09 | 9.89 | 1.62 | 7.70 | -22.72 | 136.45 | -43.41 | 124.57 | 0.7721 | -765.3 | -608.8 | |
| 2.81 | -22.00 | 2.20 | -22.00 | -22.77 | 136.20 | -43.66 | 124.49 | 0.7746 | -633.8 | 999999 | |
| 3.09 | 7.35 | 2.43 | 5.79 | -22.96 | 135.85 | -44.02 | 124.52 | 0.7788 | -712.4 | -591.8 | |
| 0.00 | 1.27 | 0.00 | 1.03 | -24.27 | 135.05 | -44.82 | 125.59 | 0.7923 | -546.0 | -404.0 | |
| 0.00 | 0.54 | 0.00 | 0.43 | -23.12 | 135.36 | -44.50 | 124.45 | 0.7840 | -507.0 | -458.2 | |
| 1.36 | 13.25 | 1.10 | 10.67 | -23.81 | 134.78 | -45.08 | 124.93 | 0.7924 | -650.3 | -637.7 | |
| 0.00 | 1.00 | 0.00 | 0.81 | -23.79 | 134.55 | -45.31 | 124.78 | 0.7943 | -509.0 | -455.3 | |
| 0.00 | 0.91 | 0.00 | 0.74 | -23.54 | 134.14 | -45.72 | 124.29 | 0.7967 | -525.0 | -426.9 | |
| 2.27 | 3.27 | 1.89 | 2.72 | -23.86 | 133.32 | -46.54 | 124.24 | 0.8053 | -446.4 | -445.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
