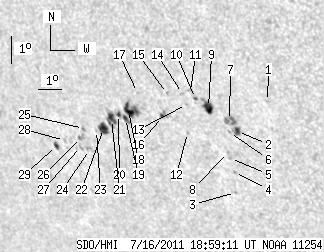

SDO HMI 2011-07-16 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.82 | 105.81 | 30.15 | 77.73 | -22.75 | 137.65 | -39.99 | 126.68 | 0.7402 | -106.9 | -97.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-16 18:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.61 | -21.78 | 143.02 | -34.62 | 129.13 | 0.6824 | 779.0 | 592.1 | |
| 3.63 | 5.72 | 2.53 | 3.98 | -22.88 | 141.48 | -36.16 | 129.32 | 0.7049 | 765.5 | 688.8 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -25.02 | 140.69 | -36.95 | 131.25 | 0.7268 | 591.0 | 531.5 | |
| 0.00 | 0.91 | 0.00 | 0.65 | -24.31 | 140.89 | -36.75 | 130.58 | 0.7202 | 604.0 | 491.7 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -23.83 | 140.89 | -36.75 | 130.02 | 0.7170 | 660.0 | 484.3 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -22.93 | 141.14 | -36.50 | 129.13 | 0.7086 | 498.0 | 401.0 | |
| 0.00 | 8.53 | 0.00 | 5.93 | -22.51 | 141.27 | -36.37 | 128.73 | 0.7046 | 736.0 | 741.8 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -23.63 | 140.83 | -36.81 | 129.74 | 0.7162 | 679.0 | 488.1 | |
| 7.80 | 10.89 | 5.47 | 7.63 | -22.11 | 140.53 | -37.11 | 127.72 | 0.7091 | 798.0 | 506.4 | |
| 0.45 | 1.18 | 0.32 | 0.83 | -21.82 | 140.08 | -37.57 | 127.08 | 0.7117 | 535.4 | 427.2 | |
| 0.00 | 2.00 | 0.00 | 1.40 | -21.59 | 139.94 | -37.70 | 126.71 | 0.7116 | 437.0 | 403.9 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -23.01 | 139.36 | -38.29 | 128.01 | 0.7261 | 456.0 | 377.5 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -22.05 | 139.63 | -38.01 | 127.05 | 0.7174 | 322.0 | 243.0 | |
| 0.00 | 1.54 | 0.00 | 1.09 | -21.68 | 139.58 | -38.06 | 126.57 | 0.7156 | -138.0 | -156.8 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -21.71 | 138.94 | -38.70 | 126.19 | 0.7221 | 337.0 | 351.2 | |
| 0.73 | 4.99 | 0.53 | 3.61 | -22.52 | 138.46 | -39.18 | 126.84 | 0.7315 | 358.0 | 240.3 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -21.74 | 137.65 | -39.99 | 125.42 | 0.7348 | -433.0 | -346.4 | |
| 7.44 | 15.51 | 5.50 | 11.44 | -22.39 | 137.04 | -40.60 | 125.81 | 0.7443 | -869.0 | -699.4 | |
| 1.91 | 7.26 | 1.42 | 5.40 | -22.67 | 136.81 | -40.83 | 126.00 | 0.7481 | -601.5 | -522.3 | |
| 1.72 | -19.00 | 1.29 | -19.00 | -22.55 | 136.55 | -41.10 | 125.70 | 0.7498 | -603.7 | 999999 | |
| 6.35 | 11.70 | 4.77 | 8.80 | -22.74 | 136.17 | -41.47 | 125.70 | 0.7544 | -690.6 | -546.3 | |
| 7.80 | 9.35 | 5.93 | 7.10 | -23.07 | 135.69 | -41.96 | 125.81 | 0.7607 | -671.6 | -562.4 | |
| 0.00 | 1.18 | 0.00 | 0.90 | -23.16 | 135.34 | -42.30 | 125.71 | 0.7644 | -398.0 | -379.5 | |
| 0.00 | 3.36 | 0.00 | 2.61 | -23.84 | 134.75 | -42.90 | 126.16 | 0.7733 | -677.0 | -563.4 | |
| 0.00 | 1.54 | 0.00 | 1.19 | -23.12 | 134.77 | -42.88 | 125.34 | 0.7694 | -600.0 | -597.0 | |
| 0.00 | 4.35 | 0.00 | 3.39 | -23.44 | 134.55 | -43.10 | 125.59 | 0.7730 | -770.0 | -718.5 | |
| 0.00 | 2.09 | 0.00 | 1.63 | -23.76 | 134.37 | -43.27 | 125.85 | 0.7763 | -529.0 | -542.3 | |
| 0.00 | 1.27 | 0.00 | 1.00 | -23.59 | 133.70 | -43.94 | 125.29 | 0.7814 | -460.0 | -337.3 | |
| 2.99 | 3.90 | 2.39 | 3.11 | -23.79 | 133.24 | -44.40 | 125.27 | 0.7864 | -403.2 | -270.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
