SDO HMI 2011-07-16 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.21 | 286.71 | 18.47 | 146.57 | 16.54 | 169.06 | -7.47 | 30.49 | 0.2456 | -657.9 | -404.7 | |
|
previous
or next observation for the same group /

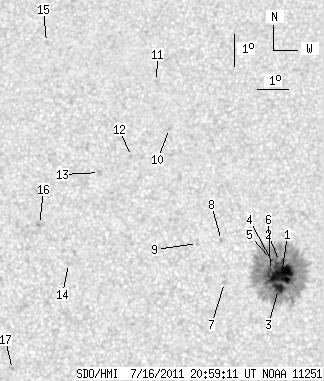

back to the solar disc SDO HMI 2011-07-16 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.86 | 271.28 | 13.19 | 138.48 | 16.43 | 169.42 | -7.11 | 29.72 | 0.2406 | -1385.0 | -460.7 | |
| 0.73 | -1.00 | 0.37 | -1.00 | 16.84 | 169.34 | -7.19 | 29.14 | 0.2472 | -922.1 | 999999 | |
| 6.62 | -1.00 | 3.38 | -1.00 | 16.00 | 169.34 | -7.19 | 30.96 | 0.2350 | -1408.9 | 999999 | |
| 1.09 | -1.00 | 0.56 | -1.00 | 16.71 | 169.18 | -7.35 | 29.92 | 0.2467 | -964.8 | 999999 | |
| 0.73 | -1.00 | 0.37 | -1.00 | 16.90 | 169.08 | -7.45 | 29.87 | 0.2502 | -660.6 | 999999 | |
| 1.18 | -1.00 | 0.60 | -1.00 | 16.55 | 169.06 | -7.47 | 30.66 | 0.2454 | -960.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 16.16 | 167.60 | -8.93 | 36.18 | 0.2536 | -927.0 | -616.9 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 17.47 | 167.44 | -9.09 | 33.67 | 0.2729 | -817.0 | -632.3 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 17.37 | 166.67 | -9.86 | 36.05 | 0.2789 | 766.0 | 587.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 20.98 | 165.52 | -11.01 | 31.97 | 0.3382 | 936.0 | 685.9 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 22.47 | 164.97 | -11.56 | 30.80 | 0.3633 | 840.0 | 718.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 20.07 | 164.33 | -12.20 | 36.24 | 0.3372 | 802.0 | 672.9 | |
| 0.00 | 1.91 | 0.00 | 1.00 | 19.55 | 163.31 | -13.22 | 39.41 | 0.3410 | 818.0 | 696.1 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 16.68 | 162.52 | -14.02 | 47.32 | 0.3170 | 815.0 | 648.0 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 23.66 | 161.10 | -15.43 | 36.33 | 0.4131 | 727.0 | 533.6 | |
| 0.00 | 2.18 | 0.00 | 1.15 | 17.88 | 161.46 | -15.07 | 46.52 | 0.3425 | 823.0 | 748.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 13.36 | 160.92 | -15.61 | 58.95 | 0.3069 | 828.0 | 644.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
