SDO HMI 2011-07-16 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.74 | 109.32 | 33.27 | 79.04 | -22.75 | 137.67 | -38.86 | 127.40 | 0.7298 | -180.6 | -37.2 | |
|
previous
or next observation for the same group /

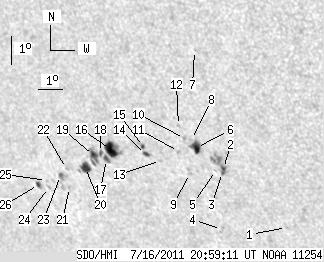

back to the solar disc SDO HMI 2011-07-16 20:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.50 | -24.75 | 143.45 | -33.08 | 133.87 | 0.6898 | 703.0 | 595.9 | |
| 1.36 | 14.97 | 0.93 | 10.27 | -22.81 | 141.50 | -35.03 | 130.07 | 0.6938 | 840.7 | 740.3 | |
| 1.45 | -2.00 | 1.00 | -2.00 | -22.95 | 141.42 | -35.12 | 130.18 | 0.6956 | 623.3 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.67 | -24.95 | 140.74 | -35.79 | 132.01 | 0.7160 | 607.0 | 508.0 | |
| 0.00 | 0.36 | 0.00 | 0.25 | -22.89 | 141.15 | -35.38 | 129.91 | 0.6977 | 418.0 | 384.0 | |
| 6.99 | 10.07 | 4.82 | 6.94 | -22.14 | 140.60 | -35.93 | 128.61 | 0.6978 | 842.7 | 501.1 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -18.85 | 141.40 | -35.13 | 125.07 | 0.6676 | 538.0 | 382.2 | |
| 0.00 | 1.36 | 0.00 | 0.94 | -21.87 | 140.48 | -36.06 | 128.19 | 0.6973 | 553.0 | 466.4 | |
| 0.00 | 1.81 | 0.00 | 1.27 | -23.05 | 140.03 | -36.50 | 129.29 | 0.7095 | 518.0 | 410.9 | |
| 0.00 | 1.45 | 0.00 | 1.00 | -21.85 | 140.20 | -36.34 | 127.97 | 0.6999 | 717.0 | 581.8 | |
| 0.00 | 1.81 | 0.00 | 1.27 | -22.31 | 139.81 | -36.72 | 128.25 | 0.7067 | 371.0 | 280.8 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -21.42 | 140.08 | -36.45 | 127.36 | 0.6982 | 631.0 | 547.6 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -22.66 | 138.96 | -37.58 | 128.08 | 0.7172 | -180.0 | -205.7 | |
| 2.45 | 7.44 | 1.75 | 5.30 | -22.49 | 138.38 | -38.15 | 127.49 | 0.7216 | 450.3 | 223.5 | |
| 1.18 | -14.00 | 0.84 | -14.00 | -22.21 | 138.39 | -38.14 | 127.17 | 0.7198 | 494.2 | 999999 | |
| 11.34 | 23.04 | 8.26 | 16.78 | -22.39 | 136.93 | -39.60 | 126.44 | 0.7349 | -870.9 | -616.6 | |
| 3.36 | -16.00 | 2.46 | -16.00 | -22.75 | 136.63 | -39.90 | 126.67 | 0.7398 | -636.1 | 999999 | |
| 1.91 | 15.15 | 1.40 | 11.18 | -22.52 | 136.45 | -40.08 | 126.29 | 0.7402 | -678.5 | -542.1 | |
| 3.63 | -18.00 | 2.68 | -18.00 | -22.64 | 136.11 | -40.42 | 126.22 | 0.7441 | -653.2 | 999999 | |
| 7.89 | 10.34 | 5.90 | 7.74 | -23.07 | 135.60 | -40.93 | 126.42 | 0.7514 | -725.3 | -439.3 | |
| 0.00 | 1.27 | 0.00 | 0.97 | -23.81 | 134.60 | -41.93 | 126.68 | 0.7646 | -745.0 | -589.8 | |
| 0.00 | 1.27 | 0.00 | 0.96 | -23.16 | 134.73 | -41.81 | 126.00 | 0.7599 | -699.0 | -589.1 | |
| 2.18 | 8.26 | 1.67 | 6.33 | -23.41 | 134.36 | -42.18 | 126.08 | 0.7646 | -745.9 | -590.5 | |
| 0.00 | 0.91 | 0.00 | 0.71 | -23.87 | 133.63 | -42.90 | 126.19 | 0.7736 | -432.0 | -376.9 | |
| 0.00 | 1.00 | 0.00 | 0.77 | -23.63 | 133.64 | -42.89 | 125.92 | 0.7723 | -489.0 | -407.3 | |
| 2.00 | 2.72 | 1.56 | 2.13 | -23.79 | 133.21 | -43.33 | 125.86 | 0.7770 | -470.5 | -441.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
