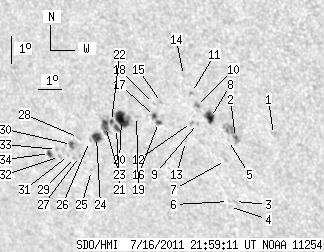

SDO HMI 2011-07-16 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.72 | 113.34 | 35.34 | 81.44 | -22.80 | 137.57 | -38.41 | 127.77 | 0.7258 | -230.5 | 48.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-16 21:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.55 | -22.64 | 143.03 | -32.95 | 131.50 | 0.6725 | 572.0 | 542.2 | |
| 1.09 | 14.52 | 0.74 | 9.89 | -22.81 | 141.47 | -34.51 | 130.48 | 0.6888 | 871.0 | 709.6 | |
| 0.00 | 1.45 | 0.00 | 1.02 | -25.05 | 140.73 | -35.25 | 132.54 | 0.7119 | 564.0 | 455.6 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -25.24 | 140.46 | -35.52 | 132.55 | 0.7156 | 369.0 | 341.8 | |
| 0.00 | 0.91 | 0.00 | 0.62 | -22.93 | 141.15 | -34.83 | 130.38 | 0.6927 | 491.0 | 354.7 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -25.07 | 140.48 | -35.50 | 132.37 | 0.7142 | 309.0 | 302.2 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -23.63 | 140.82 | -35.16 | 130.96 | 0.7009 | 675.0 | 520.4 | |
| 5.90 | 8.26 | 4.04 | 5.65 | -22.17 | 140.65 | -35.33 | 129.09 | 0.6922 | 854.7 | 644.0 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -22.40 | 140.05 | -35.93 | 128.93 | 0.6997 | 569.0 | 456.9 | |
| 0.00 | 2.90 | 0.00 | 1.99 | -21.79 | 140.19 | -35.79 | 128.29 | 0.6941 | 706.0 | 532.9 | |
| 0.00 | 1.63 | 0.00 | 1.12 | -21.35 | 140.11 | -35.86 | 127.70 | 0.6919 | 489.0 | 486.6 | |
| 0.00 | 1.54 | 0.00 | 1.07 | -22.38 | 139.81 | -36.17 | 128.73 | 0.7018 | 452.0 | 380.1 | |
| 0.00 | 0.64 | 0.00 | 0.45 | -23.05 | 139.36 | -36.62 | 129.21 | 0.7107 | 459.0 | 402.4 | |
| 0.00 | 0.54 | 0.00 | 0.37 | -20.79 | 139.95 | -36.03 | 126.89 | 0.6898 | 393.0 | 421.7 | |
| 0.00 | 1.36 | 0.00 | 0.95 | -21.75 | 138.77 | -37.21 | 127.25 | 0.7079 | 329.0 | 327.4 | |
| 2.00 | 7.62 | 1.41 | 5.39 | -22.45 | 138.43 | -37.55 | 127.85 | 0.7156 | 514.2 | 257.5 | |
| 2.27 | -16.00 | 1.60 | -16.00 | -22.25 | 138.32 | -37.65 | 127.54 | 0.7154 | 454.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.64 | -21.81 | 138.42 | -37.56 | 127.07 | 0.7116 | 181.0 | 282.5 | |
| 0.00 | 1.36 | 0.00 | 0.97 | -22.29 | 137.56 | -38.42 | 127.08 | 0.7230 | -297.0 | -291.9 | |
| 12.88 | 19.05 | 9.31 | 13.76 | -22.43 | 136.88 | -39.10 | 126.80 | 0.7304 | -915.7 | -661.2 | |
| 2.99 | 18.33 | 2.18 | 13.40 | -22.75 | 136.55 | -39.43 | 126.98 | 0.7354 | -644.2 | -453.0 | |
| 1.63 | -21.00 | 1.19 | -21.00 | -22.52 | 136.42 | -39.56 | 126.62 | 0.7353 | -685.9 | 999999 | |
| 7.80 | -21.00 | 5.72 | -21.00 | -22.71 | 136.09 | -39.88 | 126.64 | 0.7395 | -653.2 | 999999 | |
| 6.90 | 8.35 | 5.12 | 6.19 | -23.11 | 135.56 | -40.42 | 126.78 | 0.7468 | -754.2 | -490.8 | |
| 0.00 | 0.73 | 0.00 | 0.55 | -24.28 | 134.89 | -41.08 | 127.72 | 0.7596 | -688.0 | -607.0 | |
| 0.00 | 0.45 | 0.00 | 0.34 | -23.27 | 135.19 | -40.78 | 126.74 | 0.7511 | -385.0 | -417.2 | |
| 0.00 | 1.18 | 0.00 | 0.90 | -23.81 | 134.54 | -41.44 | 126.98 | 0.7602 | -740.0 | -619.8 | |
| 0.00 | 1.91 | 0.00 | 1.43 | -23.15 | 134.75 | -41.23 | 126.34 | 0.7545 | -461.0 | -497.9 | |
| 0.00 | 1.27 | 0.00 | 0.97 | -23.86 | 134.30 | -41.68 | 126.89 | 0.7626 | -648.0 | -542.7 | |
| 2.99 | 5.90 | 2.27 | 4.47 | -23.41 | 134.34 | -41.64 | 126.40 | 0.7598 | -742.7 | -644.6 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -23.81 | 134.05 | -41.93 | 126.68 | 0.7646 | -541.0 | -489.8 | |
| 0.00 | 1.18 | 0.00 | 0.91 | -23.86 | 133.62 | -42.35 | 126.50 | 0.7687 | -507.0 | -387.3 | |
| 0.00 | 1.36 | 0.00 | 1.05 | -23.63 | 133.58 | -42.39 | 126.21 | 0.7678 | -456.0 | -388.1 | |
| 2.27 | 4.08 | 1.76 | 3.17 | -23.79 | 133.20 | -42.78 | 126.17 | 0.7721 | -455.3 | -244.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
