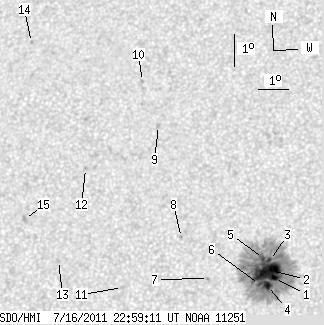

SDO HMI 2011-07-16 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.68 | 283.91 | 12.57 | 144.83 | 16.53 | 169.11 | -6.31 | 26.51 | 0.2358 | -555.8 | -443.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-16 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.27 | 268.22 | 1.66 | 136.62 | 16.24 | 169.60 | -5.83 | 25.50 | 0.2275 | -1589.8 | -505.8 | |
| 13.70 | -1.00 | 6.98 | -1.00 | 16.49 | 169.46 | -5.96 | 25.52 | 0.2322 | -1357.2 | 999999 | |
| 1.36 | -1.00 | 0.69 | -1.00 | 16.80 | 169.42 | -6.01 | 25.09 | 0.2373 | -957.4 | 999999 | |
| 4.08 | -1.00 | 2.08 | -1.00 | 16.02 | 169.38 | -6.04 | 26.77 | 0.2257 | -1515.0 | 999999 | |
| 1.45 | -1.00 | 0.74 | -1.00 | 16.86 | 169.23 | -6.20 | 25.67 | 0.2396 | -901.2 | 999999 | |
| 0.82 | -1.00 | 0.42 | -1.00 | 16.05 | 169.12 | -6.30 | 27.67 | 0.2282 | -1042.4 | 999999 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 16.22 | 167.49 | -7.94 | 32.97 | 0.2447 | -923.0 | -632.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 17.49 | 166.56 | -8.86 | 33.01 | 0.2709 | 789.0 | 613.4 | |
| 0.00 | 2.27 | 0.00 | 1.19 | 21.01 | 165.61 | -9.82 | 29.12 | 0.3285 | 844.0 | 639.4 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 22.41 | 164.97 | -10.45 | 28.48 | 0.3532 | 833.0 | 665.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 15.91 | 164.74 | -10.68 | 41.77 | 0.2688 | 735.0 | 506.4 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 19.61 | 163.29 | -12.13 | 36.98 | 0.3305 | 778.0 | 638.5 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 16.72 | 162.62 | -12.81 | 44.78 | 0.3028 | 853.0 | 570.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | 23.60 | 161.10 | -14.32 | 34.50 | 0.4020 | 740.0 | 599.6 | |
| 0.00 | 3.45 | 0.00 | 1.81 | 17.98 | 161.41 | -14.02 | 44.34 | 0.3311 | 877.0 | 699.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
