SDO HMI 2011-07-17 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.15 | 264.94 | 11.24 | 134.74 | 16.57 | 169.12 | -4.65 | 20.14 | 0.2248 | -591.3 | -478.0 | |
|
previous
or next observation for the same group /

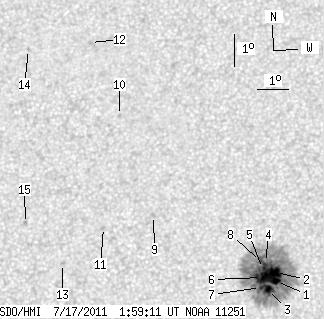

back to the solar disc SDO HMI 2011-07-17 01:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.72 | 253.59 | 1.89 | 128.82 | 16.28 | 169.60 | -4.17 | 18.87 | 0.2170 | -1546.9 | -532.1 | |
| 8.53 | -1.00 | 4.33 | -1.00 | 16.56 | 169.56 | -4.21 | 18.60 | 0.2218 | -1352.8 | 999999 | |
| 5.54 | -1.00 | 2.81 | -1.00 | 16.03 | 169.35 | -4.42 | 20.32 | 0.2144 | -1433.7 | 999999 | |
| 0.27 | -1.00 | 0.14 | -1.00 | 16.87 | 169.23 | -4.54 | 19.44 | 0.2285 | -937.0 | 999999 | |
| 1.45 | -1.00 | 0.74 | -1.00 | 16.68 | 169.14 | -4.63 | 20.09 | 0.2261 | -984.0 | 999999 | |
| 0.82 | -1.00 | 0.41 | -1.00 | 16.40 | 169.12 | -4.66 | 20.65 | 0.2218 | -1191.3 | 999999 | |
| 1.18 | -1.00 | 0.60 | -1.00 | 16.09 | 169.09 | -4.68 | 21.28 | 0.2170 | -1058.0 | 999999 | |
| 0.64 | -1.00 | 0.32 | -1.00 | 16.90 | 169.07 | -4.70 | 20.02 | 0.2299 | -761.7 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 18.31 | 165.58 | -8.19 | 29.45 | 0.2763 | 757.0 | 625.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 21.45 | 164.29 | -9.48 | 27.65 | 0.3319 | 796.0 | 610.5 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 17.91 | 163.98 | -9.79 | 34.77 | 0.2851 | 627.0 | 487.3 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 23.78 | 163.14 | -10.63 | 26.98 | 0.3737 | 745.0 | 576.5 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 16.77 | 162.71 | -11.06 | 40.63 | 0.2833 | 864.0 | 625.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | 23.52 | 161.06 | -12.71 | 31.61 | 0.3866 | 691.0 | 548.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 18.00 | 161.43 | -12.35 | 40.83 | 0.3124 | 886.0 | 698.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
