SDO HMI 2011-07-17 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.19 | 121.81 | 31.68 | 85.01 | -22.92 | 137.00 | -36.23 | 129.43 | 0.7061 | -283.5 | -142.6 | |
|
previous
or next observation for the same group /

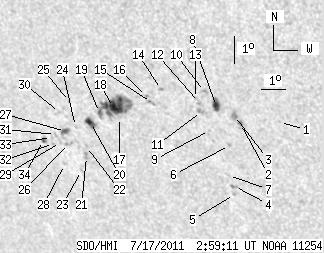

back to the solar disc SDO HMI 2011-07-17 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.36 | 0.00 | 0.24 | -22.73 | 143.03 | -30.19 | 133.99 | 0.6469 | 612.0 | 515.8 | |
| 1.27 | 2.09 | 0.84 | 1.38 | -22.83 | 141.50 | -31.72 | 132.78 | 0.6624 | 743.8 | 732.9 | |
| 0.00 | 4.72 | 0.00 | 3.11 | -22.57 | 141.34 | -31.88 | 132.32 | 0.6619 | 847.0 | 769.8 | |
| 0.00 | 3.00 | 0.00 | 2.04 | -25.05 | 140.64 | -32.58 | 134.65 | 0.6880 | 536.0 | 480.3 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -25.33 | 140.56 | -32.66 | 134.90 | 0.6910 | 477.0 | 418.5 | |
| 0.00 | 1.72 | 0.00 | 1.15 | -23.62 | 140.86 | -32.36 | 133.17 | 0.6747 | 608.0 | 482.0 | |
| 0.00 | 1.27 | 0.00 | 0.86 | -24.67 | 140.52 | -32.70 | 134.12 | 0.6862 | 490.0 | 315.2 | |
| 5.54 | 7.90 | 3.67 | 5.23 | -22.29 | 140.71 | -32.51 | 131.45 | 0.6658 | 878.9 | 806.8 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -23.13 | 140.20 | -33.02 | 132.06 | 0.6772 | 581.0 | 421.2 | |
| 0.00 | 2.45 | 0.00 | 1.62 | -21.80 | 140.37 | -32.85 | 130.57 | 0.6654 | 826.0 | 521.0 | |
| 0.00 | 4.27 | 0.00 | 2.85 | -22.49 | 140.06 | -33.16 | 131.17 | 0.6736 | 567.0 | 435.6 | |
| 0.00 | 0.91 | 0.00 | 0.61 | -22.18 | 140.07 | -33.15 | 130.80 | 0.6713 | 575.0 | 526.8 | |
| 0.00 | 1.00 | 0.00 | 0.67 | -22.05 | 139.95 | -33.28 | 130.55 | 0.6715 | 428.0 | 375.5 | |
| 0.00 | 1.72 | 0.00 | 1.17 | -21.81 | 138.66 | -34.56 | 129.25 | 0.6824 | 635.0 | 551.8 | |
| 0.00 | 2.27 | 0.00 | 1.55 | -22.27 | 138.13 | -35.09 | 129.42 | 0.6909 | 457.0 | 370.9 | |
| 0.00 | 1.27 | 0.00 | 0.87 | -22.08 | 137.99 | -35.24 | 129.07 | 0.6909 | 466.0 | 400.8 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -22.86 | 136.65 | -36.57 | 129.04 | 0.7092 | -547.0 | -480.9 | |
| 23.87 | 50.65 | 16.70 | 35.40 | -22.52 | 136.51 | -36.72 | 128.54 | 0.7083 | -880.3 | -625.5 | |
| 2.63 | -18.00 | 1.86 | -18.00 | -22.72 | 135.86 | -37.36 | 128.33 | 0.7159 | -608.2 | 999999 | |
| 6.08 | 7.35 | 4.35 | 5.26 | -23.09 | 135.36 | -37.86 | 128.43 | 0.7229 | -785.9 | -658.9 | |
| 0.00 | 2.90 | 0.00 | 2.12 | -24.29 | 134.78 | -38.44 | 129.43 | 0.7360 | -679.0 | -587.6 | |
| 0.00 | 0.82 | 0.00 | 0.59 | -23.94 | 134.90 | -38.32 | 129.11 | 0.7326 | -685.0 | -584.6 | |
| 0.00 | 1.36 | 0.00 | 1.00 | -24.80 | 134.38 | -38.84 | 129.75 | 0.7428 | -489.0 | -387.4 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -23.26 | 134.67 | -38.55 | 128.17 | 0.7306 | -469.0 | -464.5 | |
| 0.00 | 1.27 | 0.00 | 0.91 | -22.41 | 134.70 | -38.52 | 127.18 | 0.7249 | -429.0 | -381.6 | |
| 0.00 | 3.09 | 0.00 | 2.26 | -23.87 | 134.16 | -39.07 | 128.55 | 0.7391 | -436.0 | -588.2 | |
| 4.08 | 6.26 | 2.98 | 4.58 | -23.46 | 134.17 | -39.05 | 128.08 | 0.7364 | -766.6 | -582.4 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -24.62 | 133.70 | -39.52 | 129.12 | 0.7478 | -383.0 | -274.6 | |
| 0.00 | 1.18 | 0.00 | 0.87 | -23.86 | 133.82 | -39.40 | 128.31 | 0.7421 | -494.0 | -390.3 | |
| 0.00 | 1.36 | 0.00 | 0.99 | -22.81 | 134.14 | -39.08 | 127.30 | 0.7327 | -566.0 | -471.8 | |
| 0.00 | 1.54 | 0.00 | 1.14 | -23.59 | 133.70 | -39.52 | 127.92 | 0.7416 | -541.0 | -442.6 | |
| 0.00 | 1.00 | 0.00 | 0.74 | -23.91 | 133.49 | -39.73 | 128.16 | 0.7454 | -302.0 | -308.3 | |
| 0.00 | 1.09 | 0.00 | 0.80 | -23.70 | 133.48 | -39.74 | 127.92 | 0.7443 | -408.0 | -354.2 | |
| 1.72 | 2.45 | 1.28 | 1.82 | -23.83 | 133.09 | -40.13 | 127.81 | 0.7486 | -491.9 | -371.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
