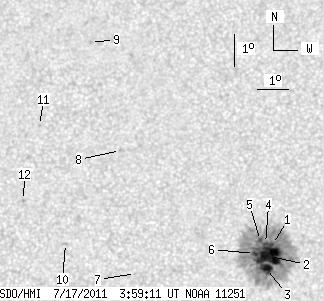

SDO HMI 2011-07-17 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.12 | 276.43 | 22.38 | 140.33 | 16.47 | 169.15 | -3.52 | 15.66 | 0.2170 | -856.3 | -395.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-17 03:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.54 | 268.89 | 0.78 | 136.42 | 16.79 | 169.47 | -3.20 | 14.09 | 0.2205 | -1051.4 | -430.1 | |
| 28.32 | -1.00 | 14.37 | -1.00 | 16.42 | 169.38 | -3.29 | 14.92 | 0.2147 | -1360.3 | 999999 | |
| 8.99 | -1.00 | 4.55 | -1.00 | 16.04 | 169.29 | -3.38 | 15.80 | 0.2090 | -1380.6 | 999999 | |
| 1.36 | -1.00 | 0.69 | -1.00 | 16.82 | 169.25 | -3.42 | 14.99 | 0.2220 | -972.3 | 999999 | |
| 2.00 | -1.00 | 1.02 | -1.00 | 16.91 | 169.09 | -3.59 | 15.55 | 0.2242 | -796.8 | 999999 | |
| 1.91 | -1.00 | 0.97 | -1.00 | 16.51 | 168.90 | -3.77 | 16.85 | 0.2185 | -1099.8 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.32 | 15.86 | 165.13 | -7.54 | 32.59 | 0.2355 | 833.0 | 649.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 19.70 | 164.47 | -8.20 | 27.05 | 0.2966 | 861.0 | 712.8 | |
| 0.00 | 1.72 | 0.00 | 0.91 | 23.13 | 163.27 | -9.40 | 25.12 | 0.3554 | 695.0 | 513.2 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 16.77 | 162.84 | -9.83 | 37.45 | 0.2701 | 827.0 | 587.8 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 20.46 | 161.76 | -10.91 | 32.70 | 0.3297 | 823.0 | 618.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 18.09 | 161.40 | -11.28 | 38.18 | 0.3020 | 859.0 | 660.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
