SDO HMI 2011-07-17 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.85 | 130.83 | 27.00 | 87.71 | -22.77 | 137.33 | -33.15 | 131.62 | 0.6758 | -185.4 | -75.4 | |
|
previous
or next observation for the same group /

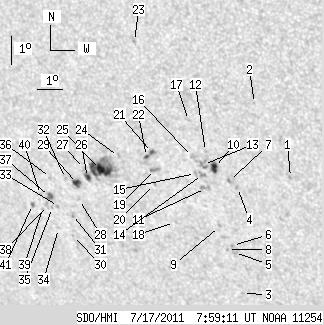

back to the solar disc SDO HMI 2011-07-17 07:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.85 | -22.46 | 143.55 | -26.93 | 136.79 | 0.6137 | 585.0 | 618.9 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -19.99 | 142.72 | -27.76 | 132.86 | 0.5994 | 427.0 | 375.8 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -26.60 | 140.69 | -29.79 | 138.80 | 0.6768 | 575.0 | 455.9 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -22.88 | 141.47 | -29.01 | 135.27 | 0.6372 | 642.0 | 557.9 | |
| 0.00 | 3.00 | 0.00 | 1.98 | -25.16 | 140.78 | -29.70 | 137.28 | 0.6634 | 354.0 | 459.9 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -24.91 | 140.77 | -29.71 | 136.99 | 0.6614 | 626.0 | 526.6 | |
| 0.00 | 2.54 | 0.00 | 1.63 | -22.65 | 141.22 | -29.26 | 134.76 | 0.6375 | 821.0 | 694.1 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -25.06 | 140.53 | -29.95 | 136.95 | 0.6647 | 520.0 | 419.0 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -24.27 | 140.44 | -30.05 | 135.95 | 0.6588 | 523.0 | 415.3 | |
| 4.90 | 6.72 | 3.15 | 4.31 | -22.23 | 140.75 | -29.73 | 133.81 | 0.6384 | 984.8 | 749.6 | |
| 0.00 | 5.18 | 0.00 | 3.36 | -22.96 | 140.23 | -30.25 | 134.23 | 0.6497 | 694.0 | 552.4 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -21.69 | 140.53 | -29.95 | 132.95 | 0.6361 | 863.0 | 694.8 | |
| 0.00 | 4.99 | 0.00 | 3.22 | -22.14 | 140.35 | -30.13 | 133.34 | 0.6416 | 549.0 | 660.3 | |
| 0.00 | 3.54 | 0.00 | 2.29 | -22.49 | 140.23 | -30.25 | 133.65 | 0.6456 | 783.0 | 568.7 | |
| 0.00 | 2.27 | 0.00 | 1.47 | -22.46 | 139.97 | -30.51 | 133.39 | 0.6480 | 399.0 | 326.5 | |
| 0.00 | 2.91 | 0.00 | 1.87 | -21.88 | 139.99 | -30.49 | 132.71 | 0.6430 | 596.0 | 501.8 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -20.66 | 140.12 | -30.36 | 131.29 | 0.6317 | 675.0 | 562.6 | |
| 0.00 | 0.36 | 0.00 | 0.24 | -24.20 | 138.70 | -31.79 | 134.35 | 0.6742 | 476.0 | 488.0 | |
| 0.00 | 4.18 | 0.00 | 2.75 | -22.39 | 138.44 | -32.04 | 131.99 | 0.6622 | -323.0 | -436.8 | |
| 0.00 | 1.27 | 0.00 | 0.84 | -22.91 | 138.26 | -32.22 | 132.47 | 0.6680 | -714.0 | -518.2 | |
| 2.00 | 4.99 | 1.31 | 3.28 | -21.81 | 138.47 | -32.01 | 131.31 | 0.6574 | 524.0 | 274.4 | |
| 1.00 | -21.00 | 0.66 | -21.00 | -21.96 | 138.20 | -32.28 | 131.26 | 0.6612 | 288.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -18.10 | 138.63 | -31.86 | 126.66 | 0.6276 | 711.0 | 503.8 | |
| 0.00 | 1.63 | 0.00 | 1.09 | -22.01 | 137.09 | -33.39 | 130.42 | 0.6725 | -768.0 | -555.5 | |
| 19.25 | 48.76 | 13.04 | 33.00 | -22.49 | 136.24 | -34.24 | 130.34 | 0.6844 | -892.6 | -589.1 | |
| 2.72 | -25.00 | 1.86 | -25.00 | -22.80 | 135.63 | -34.85 | 130.24 | 0.6924 | -591.7 | 999999 | |
| 0.00 | 2.54 | 0.00 | 1.74 | -22.49 | 135.60 | -34.88 | 129.85 | 0.6906 | -210.0 | -201.0 | |
| 0.00 | 0.54 | 0.00 | 0.38 | -23.58 | 135.07 | -35.41 | 130.75 | 0.7033 | -611.0 | -479.3 | |
| 4.90 | 5.99 | 3.38 | 4.14 | -23.02 | 135.16 | -35.32 | 130.16 | 0.6986 | -838.2 | -598.1 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -24.85 | 134.41 | -36.08 | 131.74 | 0.7184 | -475.0 | -438.3 | |
| 0.00 | 2.18 | 0.00 | 1.53 | -24.12 | 134.61 | -35.87 | 131.04 | 0.7114 | -740.0 | -610.8 | |
| 0.00 | 0.91 | 0.00 | 0.63 | -22.87 | 134.71 | -35.77 | 129.65 | 0.7018 | -722.0 | -579.2 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -23.86 | 134.11 | -36.37 | 130.39 | 0.7142 | -609.0 | -588.3 | |
| 0.00 | 0.54 | 0.00 | 0.39 | -24.64 | 133.85 | -36.63 | 131.10 | 0.7219 | -431.0 | -309.2 | |
| 0.00 | 1.18 | 0.00 | 0.84 | -23.91 | 133.85 | -36.63 | 130.25 | 0.7170 | -491.0 | -491.8 | |
| 0.00 | 1.00 | 0.00 | 0.70 | -22.87 | 134.10 | -36.38 | 129.21 | 0.7076 | -500.0 | -435.3 | |
| 3.45 | 4.45 | 2.43 | 3.14 | -23.53 | 133.85 | -36.63 | 129.81 | 0.7145 | -765.7 | -636.2 | |
| 0.00 | 2.36 | 0.00 | 1.68 | -23.85 | 133.66 | -36.82 | 130.05 | 0.7184 | -485.0 | -406.2 | |
| 0.00 | 1.09 | 0.00 | 0.78 | -23.97 | 133.41 | -37.07 | 130.01 | 0.7215 | -357.0 | -260.8 | |
| 0.00 | 1.00 | 0.00 | 0.71 | -23.48 | 133.49 | -36.99 | 129.50 | 0.7175 | -496.0 | -399.1 | |
| 1.63 | 2.09 | 1.17 | 1.49 | -23.85 | 133.03 | -37.45 | 129.61 | 0.7242 | -474.7 | -442.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
