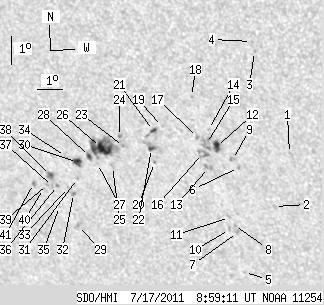

SDO HMI 2011-07-17 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.40 | 139.85 | 27.10 | 93.12 | -22.81 | 137.39 | -32.54 | 132.16 | 0.6702 | -211.7 | -105.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-17 08:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.40 | -22.37 | 143.43 | -26.51 | 137.13 | 0.6088 | 762.0 | 671.7 | |
| 0.00 | 2.18 | 0.00 | 1.39 | -24.23 | 142.46 | -27.48 | 138.33 | 0.6352 | 634.0 | 470.5 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -18.96 | 142.80 | -27.13 | 132.14 | 0.5838 | 724.0 | 620.0 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -18.63 | 142.75 | -27.19 | 131.64 | 0.5815 | 579.0 | 459.7 | |
| 0.00 | 1.27 | 0.00 | 0.85 | -26.61 | 140.69 | -29.25 | 139.31 | 0.6723 | 607.0 | 454.6 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -22.92 | 141.40 | -28.53 | 135.78 | 0.6330 | 739.0 | 527.5 | |
| 0.00 | 1.36 | 0.00 | 0.89 | -25.20 | 140.80 | -29.13 | 137.85 | 0.6587 | 645.0 | 577.0 | |
| 0.00 | 0.91 | 0.00 | 0.60 | -24.96 | 140.75 | -29.18 | 137.53 | 0.6570 | 659.0 | 564.6 | |
| 0.00 | 2.91 | 0.00 | 1.85 | -22.66 | 141.24 | -28.70 | 135.30 | 0.6322 | 671.0 | 667.4 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -25.10 | 140.52 | -29.42 | 137.48 | 0.6604 | 416.0 | 364.7 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -24.68 | 140.63 | -29.31 | 137.11 | 0.6557 | 551.0 | 470.6 | |
| 5.18 | 6.72 | 3.31 | 4.29 | -22.23 | 140.73 | -29.20 | 134.31 | 0.6334 | 959.8 | 740.0 | |
| 0.00 | 4.81 | 0.00 | 3.11 | -22.97 | 140.25 | -29.68 | 134.76 | 0.6443 | 666.0 | 586.1 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -21.66 | 140.56 | -29.38 | 133.45 | 0.6302 | 459.0 | 452.7 | |
| 0.00 | 6.99 | 0.00 | 4.48 | -22.15 | 140.37 | -29.56 | 133.87 | 0.6361 | 674.0 | 645.7 | |
| 0.00 | 6.63 | 0.00 | 4.27 | -22.50 | 140.14 | -29.80 | 134.08 | 0.6414 | 352.0 | 447.2 | |
| 0.00 | 1.82 | 0.00 | 1.16 | -21.96 | 140.08 | -29.86 | 133.36 | 0.6374 | 575.0 | 463.5 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -20.57 | 140.16 | -29.77 | 131.70 | 0.6249 | 709.0 | 572.7 | |
| 0.00 | 0.73 | 0.00 | 0.47 | -21.64 | 138.82 | -31.12 | 131.85 | 0.6472 | 547.0 | 401.9 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -22.89 | 138.19 | -31.74 | 132.84 | 0.6633 | -512.0 | -369.8 | |
| 2.00 | 5.36 | 1.30 | 3.50 | -21.79 | 138.43 | -31.50 | 131.71 | 0.6522 | 524.3 | 214.4 | |
| 2.45 | 7.99 | 1.61 | 5.25 | -22.41 | 138.20 | -31.73 | 132.27 | 0.6594 | -721.1 | -528.2 | |
| 0.00 | 1.09 | 0.00 | 0.72 | -22.39 | 137.11 | -32.82 | 131.34 | 0.6698 | -639.0 | -557.8 | |
| 0.00 | 1.63 | 0.00 | 1.08 | -22.05 | 137.04 | -32.89 | 130.88 | 0.6679 | -754.0 | -611.6 | |
| 0.00 | 2.45 | 0.00 | 1.65 | -23.10 | 136.48 | -33.45 | 131.69 | 0.6813 | -447.0 | -321.0 | |
| 21.06 | 46.67 | 14.19 | 31.39 | -22.47 | 136.18 | -33.75 | 130.69 | 0.6795 | -868.1 | -606.6 | |
| 0.00 | 0.73 | 0.00 | 0.49 | -23.03 | 135.90 | -34.03 | 131.14 | 0.6863 | -478.0 | -397.1 | |
| 2.63 | -26.00 | 1.79 | -26.00 | -22.80 | 135.65 | -34.29 | 130.68 | 0.6870 | -621.1 | 999999 | |
| 0.00 | 4.27 | 0.00 | 3.02 | -25.24 | 134.44 | -35.50 | 132.61 | 0.7159 | -607.0 | -491.4 | |
| 4.63 | 6.54 | 3.18 | 4.48 | -23.03 | 135.10 | -34.84 | 130.53 | 0.6940 | -824.8 | -581.2 | |
| 0.00 | 1.18 | 0.00 | 0.82 | -23.59 | 134.93 | -35.01 | 131.06 | 0.6996 | -679.0 | -562.1 | |
| 0.00 | 2.18 | 0.00 | 1.52 | -24.12 | 134.60 | -35.34 | 131.44 | 0.7065 | -684.0 | -600.6 | |
| 0.00 | 0.54 | 0.00 | 0.38 | -23.92 | 134.46 | -35.48 | 131.10 | 0.7064 | -621.0 | -529.3 | |
| 0.00 | 2.09 | 0.00 | 1.44 | -22.85 | 134.67 | -35.27 | 129.99 | 0.6968 | -580.0 | -532.1 | |
| 0.00 | 0.73 | 0.00 | 0.51 | -24.61 | 133.86 | -36.07 | 131.46 | 0.7167 | -358.0 | -320.4 | |
| 0.00 | 1.63 | 0.00 | 1.15 | -23.87 | 134.02 | -35.92 | 130.72 | 0.7101 | -708.0 | -608.7 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -23.92 | 133.80 | -36.14 | 130.62 | 0.7125 | -566.0 | -529.2 | |
| 2.45 | 3.81 | 1.72 | 2.67 | -23.54 | 133.84 | -36.10 | 130.20 | 0.7095 | -798.9 | -712.4 | |
| 0.00 | 1.73 | 0.00 | 1.22 | -23.86 | 133.61 | -36.32 | 130.41 | 0.7138 | -464.0 | -426.8 | |
| 0.00 | 0.36 | 0.00 | 0.26 | -24.01 | 133.39 | -36.54 | 130.43 | 0.7168 | -396.0 | -361.2 | |
| 0.00 | 2.00 | 0.00 | 1.42 | -23.85 | 133.03 | -36.91 | 129.99 | 0.7192 | -680.0 | -460.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
