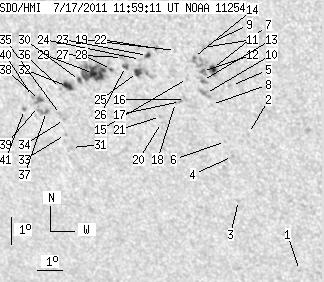

SDO HMI 2011-07-17 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.64 | 153.50 | 33.42 | 100.29 | -22.79 | 137.44 | -30.84 | 133.57 | 0.6539 | -245.8 | 7.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-17 11:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.54 | -29.18 | 142.34 | -25.94 | 145.12 | 0.6702 | -565.0 | -447.0 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -24.33 | 141.61 | -26.67 | 139.27 | 0.6290 | 471.0 | 443.0 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -26.72 | 140.64 | -27.64 | 140.94 | 0.6599 | 368.0 | 344.6 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -25.17 | 140.81 | -27.47 | 139.40 | 0.6439 | 691.0 | 591.3 | |
| 0.00 | 0.64 | 0.00 | 0.40 | -22.69 | 141.34 | -26.94 | 137.07 | 0.6160 | 444.0 | 445.6 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -24.65 | 140.67 | -27.61 | 138.68 | 0.6403 | 532.0 | 467.4 | |
| 2.90 | 7.17 | 1.82 | 4.50 | -22.13 | 140.76 | -27.53 | 135.80 | 0.6164 | 1017.9 | 802.6 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -23.38 | 140.44 | -27.84 | 136.99 | 0.6307 | 583.0 | 440.8 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -21.25 | 140.87 | -27.42 | 134.82 | 0.6073 | 545.0 | 503.9 | |
| 0.00 | 6.54 | 0.00 | 4.15 | -23.00 | 140.30 | -27.98 | 136.41 | 0.6286 | 752.0 | 572.2 | |
| 0.00 | 1.91 | 0.00 | 1.19 | -21.43 | 140.57 | -27.72 | 134.75 | 0.6118 | 800.0 | 670.1 | |
| 1.63 | 14.07 | 1.03 | 8.86 | -22.25 | 140.36 | -27.93 | 135.55 | 0.6213 | 682.4 | 603.9 | |
| 0.00 | 4.45 | 0.00 | 2.82 | -22.56 | 140.29 | -28.00 | 135.86 | 0.6247 | 698.0 | 575.2 | |
| 0.91 | -12.00 | 0.57 | -12.00 | -21.78 | 140.12 | -28.16 | 134.75 | 0.6194 | 539.0 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -22.51 | 139.74 | -28.55 | 135.27 | 0.6296 | 175.0 | 209.0 | |
| 0.00 | 2.09 | 0.00 | 1.34 | -23.24 | 139.49 | -28.79 | 135.91 | 0.6383 | 648.0 | 452.9 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -23.32 | 139.28 | -29.00 | 135.81 | 0.6410 | 628.0 | 534.9 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -23.36 | 139.08 | -29.20 | 135.67 | 0.6432 | 484.0 | 367.0 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -21.57 | 139.50 | -28.79 | 133.89 | 0.6236 | 246.0 | 309.5 | |
| 0.00 | 0.73 | 0.00 | 0.48 | -24.08 | 138.37 | -29.92 | 135.85 | 0.6561 | 454.0 | 415.0 | |
| 0.00 | 1.36 | 0.00 | 0.89 | -23.87 | 138.38 | -29.90 | 135.63 | 0.6542 | 487.0 | 430.9 | |
| 0.00 | 1.54 | 0.00 | 0.98 | -21.53 | 138.79 | -29.49 | 133.18 | 0.6303 | 675.0 | 538.2 | |
| 1.82 | 3.36 | 1.16 | 2.15 | -21.79 | 138.39 | -29.89 | 133.13 | 0.6363 | 431.8 | 364.8 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -21.93 | 138.09 | -30.19 | 133.04 | 0.6405 | 425.0 | 262.3 | |
| 4.18 | 14.43 | 2.70 | 9.33 | -22.39 | 137.87 | -30.42 | 133.39 | 0.6464 | -812.8 | -390.0 | |
| 2.54 | 3.45 | 1.65 | 2.24 | -22.20 | 137.46 | -30.83 | 132.80 | 0.6489 | -730.2 | -547.9 | |
| 0.00 | 3.54 | 0.00 | 2.29 | -21.90 | 137.41 | -30.87 | 132.39 | 0.6469 | -516.0 | -430.4 | |
| 1.18 | 43.48 | 0.77 | 28.71 | -22.33 | 136.88 | -31.40 | 132.45 | 0.6555 | -702.8 | -542.0 | |
| 21.42 | -28.00 | 14.16 | -28.00 | -22.50 | 136.14 | -32.14 | 132.03 | 0.6641 | -877.7 | 999999 | |
| 2.09 | -28.00 | 1.39 | -28.00 | -22.76 | 135.52 | -32.76 | 131.84 | 0.6721 | -582.3 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.19 | -25.12 | 134.51 | -33.78 | 133.79 | 0.6996 | -503.0 | -424.2 | |
| 5.26 | 7.90 | 3.54 | 5.31 | -22.99 | 134.98 | -33.30 | 131.68 | 0.6790 | -823.9 | -379.5 | |
| 0.00 | 1.18 | 0.00 | 0.81 | -24.67 | 134.41 | -33.88 | 133.20 | 0.6971 | -613.0 | -573.7 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -24.15 | 134.53 | -33.76 | 132.68 | 0.6921 | -702.0 | -605.9 | |
| 0.00 | 2.09 | 0.00 | 1.43 | -23.98 | 134.42 | -33.87 | 132.40 | 0.6918 | -641.0 | -515.9 | |
| 0.00 | 1.36 | 0.00 | 0.92 | -23.07 | 134.68 | -33.60 | 131.54 | 0.6825 | -656.0 | -555.6 | |
| 1.54 | 5.17 | 1.06 | 3.57 | -23.90 | 133.88 | -34.41 | 131.89 | 0.6963 | -670.6 | -514.5 | |
| 3.72 | 5.08 | 2.56 | 3.49 | -23.53 | 133.71 | -34.58 | 131.32 | 0.6952 | -762.6 | -603.2 | |
| 0.00 | 1.00 | 0.00 | 0.69 | -23.74 | 133.60 | -34.69 | 131.49 | 0.6977 | -553.0 | -501.8 | |
| 0.00 | 1.09 | 0.00 | 0.75 | -23.41 | 133.46 | -34.83 | 130.99 | 0.6966 | -537.0 | -469.2 | |
| 1.45 | 2.00 | 1.01 | 1.39 | -23.88 | 132.99 | -35.30 | 131.19 | 0.7044 | -517.8 | -410.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
