SDO HMI 2011-07-17 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.20 | 247.67 | 21.88 | 125.56 | 16.45 | 169.18 | 2.00 | 350.79 | 0.2105 | -1162.8 | -421.6 | |
|
previous
or next observation for the same group /

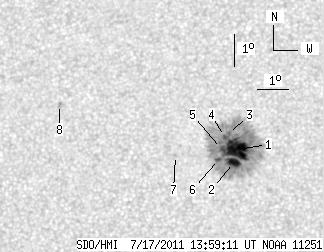

back to the solar disc SDO HMI 2011-07-17 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.13 | 244.22 | 14.76 | 123.80 | 16.50 | 169.32 | 2.14 | 350.21 | 0.2115 | -1331.6 | -434.8 | |
| 8.17 | -1.00 | 4.13 | -1.00 | 16.09 | 169.22 | 2.04 | 350.33 | 0.2044 | -1398.2 | 999999 | |
| 1.00 | -1.00 | 0.51 | -1.00 | 17.00 | 169.07 | 1.89 | 351.69 | 0.2193 | -615.1 | 999999 | |
| 1.63 | -1.00 | 0.83 | -1.00 | 16.90 | 168.94 | 1.76 | 352.19 | 0.2174 | -783.2 | 999999 | |
| 1.27 | -1.00 | 0.64 | -1.00 | 16.53 | 168.85 | 1.66 | 352.38 | 0.2108 | -1042.5 | 999999 | |
| 2.00 | -1.00 | 1.01 | -1.00 | 16.19 | 168.75 | 1.56 | 352.61 | 0.2048 | -828.8 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.31 | 167.38 | 0.20 | 359.06 | 0.2053 | -824.0 | -633.5 | |
| 0.00 | 2.45 | 0.00 | 1.25 | 17.90 | 163.67 | -3.51 | 14.14 | 0.2397 | 954.0 | 739.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
