SDO HMI 2011-07-17 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.54 | 159.25 | 29.54 | 100.80 | -22.76 | 137.28 | -27.69 | 136.53 | 0.6239 | -106.4 | -138.8 | |
|
previous
or next observation for the same group /

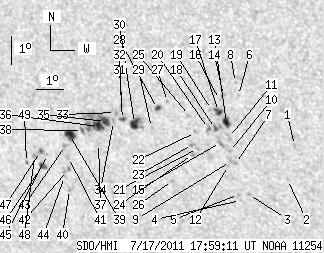

back to the solar disc SDO HMI 2011-07-17 17:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.82 | -22.94 | 143.08 | -21.89 | 143.04 | 0.5730 | 659.0 | 467.3 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -24.13 | 142.62 | -22.35 | 143.81 | 0.5898 | 657.0 | 555.2 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -24.70 | 141.08 | -23.88 | 142.67 | 0.6087 | 679.0 | 547.6 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -24.92 | 140.74 | -24.22 | 142.53 | 0.6139 | 656.0 | 498.0 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -24.71 | 140.71 | -24.25 | 142.27 | 0.6120 | 634.0 | 492.9 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -21.30 | 141.36 | -23.60 | 139.03 | 0.5711 | 500.0 | 296.8 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -23.64 | 140.82 | -24.14 | 141.18 | 0.6000 | 749.0 | 644.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -20.86 | 141.33 | -23.64 | 138.44 | 0.5669 | 583.0 | 466.6 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -23.57 | 140.65 | -24.31 | 140.92 | 0.6008 | 746.0 | 616.2 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -23.23 | 140.68 | -24.28 | 140.56 | 0.5970 | 819.0 | 679.3 | |
| 0.00 | 2.90 | 0.00 | 1.78 | -22.74 | 140.74 | -24.22 | 140.06 | 0.5916 | 600.0 | 527.7 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -23.71 | 140.55 | -24.41 | 140.97 | 0.6031 | 528.0 | 446.9 | |
| 4.45 | 6.44 | 2.71 | 3.93 | -22.23 | 140.76 | -24.20 | 139.48 | 0.5862 | 976.5 | 800.3 | |
| 0.00 | 2.00 | 0.00 | 1.21 | -21.31 | 140.82 | -24.14 | 138.42 | 0.5764 | 800.0 | 596.7 | |
| 0.00 | 4.54 | 0.00 | 2.79 | -22.93 | 140.41 | -24.55 | 139.91 | 0.5964 | 594.0 | 520.3 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -21.45 | 140.65 | -24.31 | 138.41 | 0.5794 | 663.0 | 644.4 | |
| 3.90 | 4.72 | 2.38 | 2.88 | -21.87 | 140.54 | -24.42 | 138.78 | 0.5845 | 876.2 | 777.3 | |
| 1.00 | 5.26 | 0.61 | 3.23 | -22.45 | 140.32 | -24.64 | 139.25 | 0.5924 | 678.5 | 626.0 | |
| 0.00 | 2.18 | 0.00 | 1.33 | -21.81 | 140.30 | -24.66 | 138.44 | 0.5862 | 536.0 | 530.3 | |
| 0.00 | 4.08 | 0.00 | 2.51 | -22.46 | 140.07 | -24.90 | 138.97 | 0.5949 | 745.0 | 450.2 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -23.16 | 139.53 | -25.44 | 139.22 | 0.6068 | 631.0 | 507.7 | |
| 0.00 | 1.81 | 0.00 | 1.12 | -22.62 | 139.56 | -25.40 | 138.61 | 0.6011 | 583.0 | 384.9 | |
| 0.00 | 1.72 | 0.00 | 1.07 | -23.03 | 139.37 | -25.60 | 138.89 | 0.6069 | 549.0 | 434.7 | |
| 0.00 | 1.81 | 0.00 | 1.13 | -23.38 | 139.30 | -25.67 | 139.22 | 0.6110 | 584.0 | 463.9 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -22.04 | 139.46 | -25.51 | 137.80 | 0.5964 | 559.0 | 432.9 | |
| 0.00 | 1.00 | 0.00 | 0.63 | -24.31 | 138.35 | -26.61 | 139.31 | 0.6285 | 629.0 | 463.6 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -21.59 | 138.74 | -26.22 | 136.49 | 0.5989 | 626.0 | 518.4 | |
| 2.72 | 3.18 | 1.69 | 1.97 | -21.84 | 138.32 | -26.64 | 136.36 | 0.6053 | 674.3 | 509.2 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -22.50 | 137.97 | -27.00 | 136.80 | 0.6149 | -550.0 | -464.8 | |
| 7.08 | 13.79 | 4.46 | 8.68 | -22.39 | 137.36 | -27.61 | 136.05 | 0.6196 | -890.2 | -647.6 | |
| 2.36 | 2.81 | 1.49 | 1.78 | -22.27 | 136.94 | -28.03 | 135.49 | 0.6225 | -867.6 | -779.8 | |
| 0.00 | 1.18 | 0.00 | 0.74 | -21.76 | 137.01 | -27.95 | 134.94 | 0.6172 | -669.0 | -567.5 | |
| 0.00 | 1.72 | 0.00 | 1.09 | -22.04 | 136.73 | -28.24 | 135.01 | 0.6225 | -909.0 | -796.7 | |
| 0.00 | 1.91 | 0.00 | 1.21 | -22.35 | 136.58 | -28.38 | 135.25 | 0.6267 | -859.0 | -677.5 | |
| 5.08 | 43.64 | 3.23 | 27.89 | -22.37 | 136.28 | -28.69 | 134.97 | 0.6297 | -962.3 | -553.4 | |
| 7.44 | -35.00 | 4.76 | -35.00 | -22.55 | 135.97 | -28.99 | 134.90 | 0.6342 | -959.7 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.76 | -23.14 | 135.84 | -29.13 | 135.48 | 0.6407 | -783.0 | -651.5 | |
| 0.45 | -35.00 | 0.29 | -35.00 | -22.71 | 135.33 | -29.64 | 134.50 | 0.6418 | -797.8 | 999999 | |
| 6.71 | 9.53 | 4.36 | 6.18 | -22.87 | 134.79 | -30.17 | 134.21 | 0.6483 | -879.9 | -745.1 | |
| 0.00 | 1.45 | 0.00 | 0.96 | -24.79 | 134.29 | -30.67 | 136.01 | 0.6691 | -646.0 | -561.2 | |
| 0.00 | 2.36 | 0.00 | 1.55 | -23.67 | 134.55 | -30.41 | 134.94 | 0.6573 | -632.0 | -581.8 | |
| 0.00 | 3.27 | 0.00 | 2.15 | -24.13 | 134.39 | -30.57 | 135.33 | 0.6626 | -599.0 | -631.4 | |
| 0.00 | 1.91 | 0.00 | 1.24 | -23.26 | 134.54 | -30.42 | 134.44 | 0.6539 | -612.0 | -551.7 | |
| 0.00 | 1.36 | 0.00 | 0.90 | -24.34 | 134.22 | -30.74 | 135.43 | 0.6660 | -551.0 | -501.4 | |
| 0.00 | 0.45 | 0.00 | 0.30 | -23.60 | 133.76 | -31.21 | 134.16 | 0.6641 | -578.0 | -586.0 | |
| 3.63 | 5.17 | 2.42 | 3.44 | -23.99 | 133.46 | -31.51 | 134.36 | 0.6701 | -644.0 | -347.6 | |
| 1.72 | 4.99 | 1.14 | 3.31 | -23.51 | 133.51 | -31.46 | 133.84 | 0.6657 | -803.6 | -569.3 | |
| 0.00 | 2.27 | 0.00 | 1.51 | -23.69 | 133.22 | -31.74 | 133.81 | 0.6699 | -613.0 | -529.1 | |
| 0.00 | 1.36 | 0.00 | 0.91 | -23.92 | 132.85 | -32.12 | 133.76 | 0.6752 | -501.0 | -418.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
