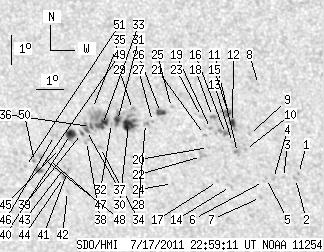

SDO HMI 2011-07-17 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.27 | 174.49 | 31.12 | 107.67 | -22.76 | 137.35 | -24.84 | 139.54 | 0.5981 | -147.1 | -102.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-17 22:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.65 | -23.87 | 142.78 | -19.41 | 147.23 | 0.5635 | 756.0 | 558.0 | |
| 0.00 | 2.09 | 0.00 | 1.25 | -24.05 | 142.65 | -19.54 | 147.24 | 0.5666 | 528.0 | 509.5 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -24.03 | 142.23 | -19.96 | 146.67 | 0.5697 | 636.0 | 508.6 | |
| 0.00 | 1.81 | 0.00 | 1.09 | -24.07 | 141.86 | -20.33 | 146.25 | 0.5731 | 691.0 | 553.8 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -24.08 | 141.61 | -20.58 | 145.94 | 0.5752 | 839.0 | 690.7 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -24.19 | 141.49 | -20.70 | 145.90 | 0.5774 | 622.0 | 508.2 | |
| 0.00 | 1.63 | 0.00 | 1.00 | -24.75 | 141.28 | -20.91 | 146.24 | 0.5854 | 701.0 | 478.3 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -20.86 | 141.83 | -20.36 | 142.57 | 0.5369 | 740.0 | 584.8 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -22.58 | 141.26 | -20.93 | 143.83 | 0.5612 | 770.0 | 556.7 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -23.10 | 141.03 | -21.16 | 144.13 | 0.5689 | 806.0 | 609.3 | |
| 0.00 | 3.63 | 0.00 | 2.19 | -23.21 | 140.73 | -21.46 | 143.88 | 0.5727 | 839.0 | 732.2 | |
| 3.18 | 6.53 | 1.90 | 3.91 | -22.18 | 140.72 | -21.47 | 142.70 | 0.5615 | 1018.1 | 761.1 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -22.87 | 140.61 | -21.59 | 143.35 | 0.5700 | 680.0 | 533.2 | |
| 0.00 | 2.99 | 0.00 | 1.83 | -24.40 | 140.27 | -21.93 | 144.63 | 0.5896 | 566.0 | 433.6 | |
| 2.00 | 6.80 | 1.19 | 4.06 | -21.88 | 140.63 | -21.57 | 142.23 | 0.5590 | 957.6 | 763.2 | |
| 1.63 | 8.44 | 0.98 | 5.07 | -22.57 | 140.41 | -21.78 | 142.76 | 0.5684 | 764.0 | 624.5 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -24.24 | 139.83 | -22.37 | 143.93 | 0.5915 | 611.0 | 433.4 | |
| 0.54 | 2.45 | 0.33 | 1.47 | -22.00 | 140.04 | -22.15 | 141.64 | 0.5655 | 788.7 | 692.2 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -22.41 | 139.90 | -22.29 | 141.96 | 0.5712 | 661.0 | 577.4 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -23.07 | 139.71 | -22.48 | 142.49 | 0.5799 | 526.0 | 475.9 | |
| 0.00 | 1.81 | 0.00 | 1.10 | -22.63 | 139.65 | -22.54 | 141.90 | 0.5757 | 383.0 | 404.3 | |
| 0.00 | 4.35 | 0.00 | 2.66 | -23.39 | 139.41 | -22.79 | 142.49 | 0.5859 | 521.0 | 431.2 | |
| 0.00 | 1.91 | 0.00 | 1.15 | -22.01 | 139.65 | -22.54 | 141.18 | 0.5692 | 733.0 | 532.6 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -24.36 | 138.16 | -24.03 | 142.16 | 0.6068 | 641.0 | 479.5 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -21.74 | 138.62 | -23.57 | 139.64 | 0.5757 | 745.0 | 620.9 | |
| 4.90 | 5.63 | 2.98 | 3.42 | -21.92 | 138.19 | -24.00 | 139.37 | 0.5815 | 700.8 | 340.1 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -22.24 | 137.85 | -24.34 | 139.35 | 0.5879 | -748.0 | -601.2 | |
| 0.00 | 1.91 | 0.00 | 1.17 | -22.32 | 137.58 | -24.61 | 139.15 | 0.5912 | -896.0 | -729.5 | |
| 0.00 | 3.18 | 0.00 | 1.94 | -21.86 | 137.20 | -25.00 | 138.16 | 0.5902 | 38.0 | 10.6 | |
| 10.98 | 28.49 | 6.77 | 17.56 | -22.38 | 136.95 | -25.24 | 138.52 | 0.5976 | -923.2 | -581.1 | |
| 4.45 | -30.00 | 2.75 | -30.00 | -22.25 | 136.57 | -25.62 | 137.97 | 0.5999 | -790.5 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.18 | -22.36 | 136.33 | -25.86 | 137.84 | 0.6032 | -801.0 | -704.3 | |
| 7.98 | 36.65 | 4.97 | 22.82 | -22.41 | 135.99 | -26.20 | 137.54 | 0.6068 | -1016.4 | -625.3 | |
| 0.00 | 2.00 | 0.00 | 1.25 | -23.21 | 135.75 | -26.44 | 138.24 | 0.6167 | -729.0 | -634.4 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -21.88 | 135.73 | -26.46 | 136.62 | 0.6042 | -196.0 | -149.0 | |
| 1.36 | -33.00 | 0.85 | -33.00 | -22.50 | 135.53 | -26.66 | 137.17 | 0.6120 | -790.8 | 999999 | |
| 1.91 | -33.00 | 1.19 | -33.00 | -22.64 | 135.35 | -26.84 | 137.15 | 0.6150 | -812.3 | 999999 | |
| 0.00 | 1.81 | 0.00 | 1.14 | -23.02 | 135.27 | -26.92 | 137.52 | 0.6193 | -588.0 | -579.2 | |
| 1.36 | 2.27 | 0.86 | 1.43 | -22.75 | 135.14 | -27.05 | 137.07 | 0.6180 | -640.7 | -551.3 | |
| 7.08 | 9.25 | 4.47 | 5.84 | -22.80 | 134.72 | -27.47 | 136.71 | 0.6224 | -829.4 | -588.6 | |
| 0.00 | 3.08 | 0.00 | 1.98 | -24.09 | 134.32 | -27.88 | 137.82 | 0.6380 | -606.0 | -589.4 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -24.79 | 134.15 | -28.05 | 138.46 | 0.6459 | -650.0 | -538.4 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -23.96 | 134.23 | -27.96 | 137.59 | 0.6375 | -685.0 | -623.4 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -24.31 | 134.11 | -28.08 | 137.87 | 0.6418 | -693.0 | -584.5 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -23.30 | 134.20 | -27.99 | 136.79 | 0.6318 | -611.0 | -519.5 | |
| 0.00 | 2.63 | 0.00 | 1.67 | -22.86 | 134.11 | -28.08 | 136.18 | 0.6286 | -643.0 | -469.6 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -23.70 | 133.69 | -28.50 | 136.77 | 0.6401 | -680.0 | -630.9 | |
| 0.00 | 3.63 | 0.00 | 2.34 | -23.61 | 133.41 | -28.78 | 136.39 | 0.6419 | -876.0 | -726.7 | |
| 2.90 | 3.36 | 1.88 | 2.18 | -24.10 | 133.21 | -28.98 | 136.78 | 0.6481 | -622.1 | -694.6 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -23.79 | 133.13 | -29.06 | 136.35 | 0.6461 | -736.0 | -621.7 | |
| 0.00 | 0.91 | 0.00 | 0.59 | -23.98 | 132.74 | -29.45 | 136.20 | 0.6513 | -629.0 | -447.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
