SDO HMI 2011-07-17 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.35 | 192.20 | 29.78 | 117.89 | -22.58 | 137.24 | -24.40 | 139.81 | 0.5922 | -118.7 | -153.4 | |
|
previous
or next observation for the same group /

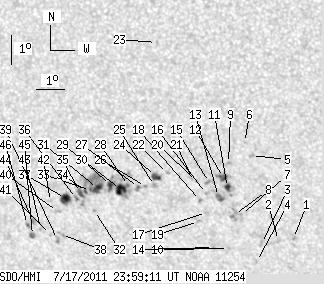

back to the solar disc SDO HMI 2011-07-17 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.81 | -23.88 | 142.75 | -18.89 | 147.94 | 0.5597 | 758.0 | 625.1 | |
| 0.00 | 2.54 | 0.00 | 1.52 | -23.97 | 142.21 | -19.43 | 147.31 | 0.5649 | 607.0 | 494.2 | |
| 0.00 | 2.45 | 0.00 | 1.48 | -24.09 | 141.59 | -20.05 | 146.63 | 0.5712 | 830.0 | 638.3 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -24.73 | 141.30 | -20.34 | 146.93 | 0.5807 | 685.0 | 564.0 | |
| 0.00 | 1.72 | 0.00 | 1.01 | -21.08 | 141.70 | -19.94 | 143.39 | 0.5358 | 738.0 | 636.8 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -20.64 | 141.51 | -20.13 | 142.62 | 0.5325 | 654.0 | 554.9 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -23.11 | 141.04 | -20.60 | 144.86 | 0.5644 | 761.0 | 622.1 | |
| 0.00 | 4.63 | 0.00 | 2.78 | -23.11 | 140.79 | -20.85 | 144.55 | 0.5666 | 768.0 | 725.6 | |
| 0.00 | 2.63 | 0.00 | 1.55 | -21.37 | 140.85 | -20.79 | 142.62 | 0.5466 | 811.0 | 593.7 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -24.30 | 140.37 | -21.27 | 145.33 | 0.5833 | 686.0 | 560.9 | |
| 3.08 | 17.06 | 1.84 | 10.15 | -22.19 | 140.69 | -20.95 | 143.38 | 0.5571 | 1018.7 | 594.8 | |
| 4.99 | -11.00 | 2.97 | -11.00 | -21.85 | 140.60 | -21.04 | 142.87 | 0.5541 | 876.8 | 999999 | |
| 0.00 | 7.35 | 0.00 | 4.40 | -22.51 | 140.32 | -21.32 | 143.28 | 0.5638 | 778.0 | 612.6 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -24.28 | 139.84 | -21.80 | 144.66 | 0.5874 | 514.0 | 475.1 | |
| 0.00 | 3.72 | 0.00 | 2.22 | -22.04 | 140.08 | -21.56 | 142.43 | 0.5608 | 765.0 | 678.0 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -22.42 | 139.91 | -21.73 | 142.66 | 0.5664 | 703.0 | 576.3 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -23.08 | 139.80 | -21.84 | 143.28 | 0.5745 | 332.0 | 259.2 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -22.67 | 139.65 | -21.98 | 142.63 | 0.5713 | 579.0 | 413.5 | |
| 0.00 | 2.00 | 0.00 | 1.21 | -23.40 | 139.46 | -22.18 | 143.22 | 0.5809 | 635.0 | 489.2 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -22.02 | 139.62 | -22.02 | 141.84 | 0.5646 | 725.0 | 582.2 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -21.92 | 139.50 | -22.14 | 141.57 | 0.5647 | 290.0 | 315.9 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -21.78 | 138.63 | -23.01 | 140.35 | 0.5710 | 674.0 | 538.8 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -17.40 | 138.90 | -22.74 | 134.96 | 0.5232 | 742.0 | 577.4 | |
| 4.99 | 6.53 | 3.02 | 3.95 | -21.90 | 138.18 | -23.46 | 139.96 | 0.5764 | 741.8 | 340.5 | |
| 0.00 | 2.72 | 0.00 | 1.65 | -22.21 | 138.09 | -23.55 | 140.23 | 0.5804 | -827.0 | -545.8 | |
| 0.00 | 1.63 | 0.00 | 0.99 | -22.25 | 137.76 | -23.88 | 139.90 | 0.5839 | -723.0 | -560.2 | |
| 0.36 | 2.63 | 0.22 | 1.61 | -22.30 | 137.50 | -24.14 | 139.65 | 0.5867 | -872.5 | -757.3 | |
| 1.09 | 39.74 | 0.67 | 24.38 | -22.24 | 137.15 | -24.49 | 139.19 | 0.5894 | -783.6 | -398.7 | |
| 8.89 | -28.00 | 5.46 | -28.00 | -22.39 | 136.83 | -24.81 | 139.01 | 0.5938 | -932.9 | 999999 | |
| 3.72 | -28.00 | 2.29 | -28.00 | -22.26 | 136.49 | -25.15 | 138.49 | 0.5957 | -880.8 | 999999 | |
| 5.17 | 47.18 | 3.20 | 29.23 | -22.38 | 135.99 | -25.65 | 138.10 | 0.6015 | -1021.9 | -591.2 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -23.15 | 135.72 | -25.92 | 138.72 | 0.6113 | -759.0 | -655.0 | |
| 1.00 | -31.00 | 0.62 | -31.00 | -22.46 | 135.72 | -25.92 | 137.90 | 0.6048 | -995.5 | 999999 | |
| 1.45 | -31.00 | 0.90 | -31.00 | -22.50 | 135.52 | -26.11 | 137.75 | 0.6070 | -701.2 | 999999 | |
| 3.18 | -31.00 | 1.98 | -31.00 | -22.54 | 135.33 | -26.31 | 137.59 | 0.6092 | -789.2 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.31 | -22.76 | 135.14 | -26.50 | 137.65 | 0.6130 | -924.0 | -718.7 | |
| 7.08 | 10.07 | 4.45 | 6.33 | -22.77 | 134.73 | -26.91 | 137.25 | 0.6170 | -797.8 | -574.4 | |
| 0.00 | 2.72 | 0.00 | 1.74 | -24.03 | 134.30 | -27.34 | 138.29 | 0.6326 | -661.0 | -640.1 | |
| 0.00 | 3.36 | 0.00 | 2.15 | -24.21 | 134.11 | -27.53 | 138.30 | 0.6360 | -685.0 | -598.1 | |
| 0.00 | 2.09 | 0.00 | 1.32 | -23.23 | 134.33 | -27.31 | 137.39 | 0.6250 | -648.0 | -548.2 | |
| 0.00 | 1.09 | 0.00 | 0.70 | -24.04 | 133.88 | -27.76 | 137.89 | 0.6365 | -687.0 | -620.7 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -22.90 | 134.14 | -27.50 | 136.81 | 0.6236 | -687.0 | -576.9 | |
| 0.00 | 2.18 | 0.00 | 1.40 | -23.82 | 133.56 | -28.08 | 137.31 | 0.6374 | -466.0 | -575.0 | |
| 0.00 | 2.36 | 0.00 | 1.51 | -23.62 | 133.34 | -28.30 | 136.87 | 0.6376 | -865.0 | -760.1 | |
| 2.99 | 3.36 | 1.93 | 2.17 | -24.11 | 133.19 | -28.45 | 137.29 | 0.6434 | -615.4 | -663.2 | |
| 0.36 | 2.09 | 0.23 | 1.34 | -23.73 | 133.09 | -28.55 | 136.76 | 0.6409 | -708.8 | -554.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
