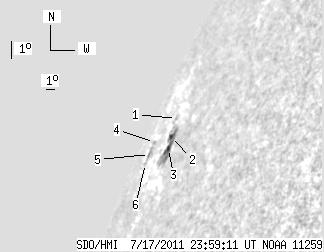

SDO HMI 2011-07-17 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.63 | 33.39 | 7.76 | 110.72 | 24.83 | 79.06 | -82.58 | 65.53 | 0.9890 | -126.5 | -30.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-17 23:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 5.07 | 25.76 | 79.16 | -82.48 | 64.60 | 0.9890 | 168.0 | 158.1 | |
| 1.00 | 24.32 | 3.03 | 72.32 | 25.21 | 79.86 | -81.78 | 65.17 | 0.9874 | -303.6 | -148.9 | |
| 1.63 | -2.00 | 4.73 | -2.00 | 24.84 | 80.33 | -81.31 | 65.55 | 0.9862 | -328.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 5.29 | 24.75 | 76.57 | -85.07 | 65.56 | 0.9943 | 330.0 | 254.4 | |
| 0.00 | 4.99 | 0.00 | 22.09 | 24.36 | 76.70 | -84.94 | 65.96 | 0.9941 | 378.0 | 179.4 | |
| 0.00 | 1.36 | 0.00 | 5.95 | 24.06 | 76.71 | -84.93 | 66.26 | 0.9941 | 112.0 | 61.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
