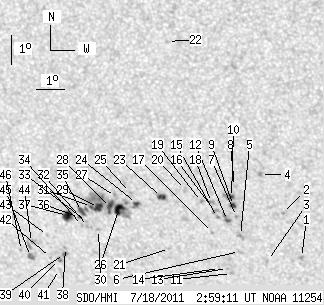

SDO HMI 2011-07-18 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.94 | 170.54 | 26.72 | 103.62 | -22.64 | 137.02 | -22.97 | 141.56 | 0.5802 | -153.7 | -164.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-18 02:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.27 | 0.00 | 1.34 | -23.89 | 142.82 | -17.17 | 150.32 | 0.5473 | 856.0 | 645.5 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -22.39 | 142.36 | -17.63 | 148.12 | 0.5323 | 832.0 | 652.6 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -24.03 | 141.60 | -18.38 | 148.78 | 0.5579 | 603.0 | 534.9 | |
| 0.00 | 2.72 | 0.00 | 1.58 | -21.08 | 141.77 | -18.22 | 145.81 | 0.5212 | 743.0 | 633.9 | |
| 0.00 | 4.18 | 0.00 | 2.48 | -23.19 | 140.78 | -19.21 | 146.79 | 0.5542 | 894.0 | 651.2 | |
| 0.00 | 1.91 | 0.00 | 1.14 | -23.74 | 140.66 | -19.33 | 147.22 | 0.5617 | 690.0 | 406.5 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -22.54 | 140.74 | -19.25 | 146.02 | 0.5470 | 930.0 | 685.0 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -21.51 | 140.81 | -19.18 | 144.96 | 0.5344 | 745.0 | 587.6 | |
| 2.27 | 3.72 | 1.34 | 2.19 | -22.16 | 140.69 | -19.30 | 145.53 | 0.5430 | 976.8 | 732.9 | |
| 1.91 | 6.17 | 1.12 | 3.63 | -21.89 | 140.66 | -19.33 | 145.18 | 0.5401 | 1012.8 | 741.6 | |
| 0.00 | 1.72 | 0.00 | 1.04 | -24.52 | 140.25 | -19.73 | 147.50 | 0.5739 | 695.0 | 481.3 | |
| 1.72 | 5.17 | 1.02 | 3.07 | -22.68 | 140.40 | -19.59 | 145.73 | 0.5514 | 700.8 | 717.9 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -24.35 | 140.14 | -19.85 | 147.17 | 0.5728 | 620.0 | 583.8 | |
| 0.00 | 1.09 | 0.00 | 0.66 | -24.35 | 139.85 | -20.14 | 146.82 | 0.5751 | 601.0 | 527.4 | |
| 0.00 | 1.63 | 0.00 | 0.97 | -22.59 | 140.06 | -19.93 | 145.18 | 0.5532 | 670.0 | 523.1 | |
| 0.00 | 3.36 | 0.00 | 1.99 | -22.39 | 140.02 | -19.96 | 144.90 | 0.5511 | 726.0 | 574.8 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -23.11 | 139.81 | -20.18 | 145.42 | 0.5613 | 505.0 | 488.8 | |
| 0.00 | 2.63 | 0.00 | 1.56 | -22.08 | 139.93 | -20.06 | 144.43 | 0.5485 | 740.0 | 690.2 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -22.06 | 139.58 | -20.41 | 143.94 | 0.5511 | 746.0 | 541.2 | |
| 0.00 | 1.82 | 0.00 | 1.08 | -21.66 | 139.08 | -20.91 | 142.83 | 0.5511 | 627.0 | 507.9 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -23.71 | 138.18 | -21.81 | 144.04 | 0.5815 | 564.0 | 393.4 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -16.74 | 139.12 | -20.87 | 136.43 | 0.4970 | 590.0 | 539.8 | |
| 4.18 | 5.90 | 2.50 | 3.53 | -21.96 | 138.19 | -21.80 | 142.05 | 0.5623 | 701.4 | 466.3 | |
| 2.09 | 5.08 | 1.26 | 3.07 | -22.20 | 137.26 | -22.73 | 141.20 | 0.5731 | -790.9 | -599.9 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -21.83 | 137.11 | -22.88 | 140.58 | 0.5706 | 429.0 | 203.0 | |
| 7.35 | 61.72 | 4.47 | 37.59 | -22.43 | 136.57 | -23.42 | 140.66 | 0.5816 | -992.1 | -583.3 | |
| 0.00 | 3.00 | 0.00 | 1.81 | -21.98 | 136.54 | -23.44 | 140.10 | 0.5773 | -343.0 | -362.7 | |
| 5.45 | -26.00 | 3.32 | -26.00 | -22.37 | 136.30 | -23.69 | 140.27 | 0.5835 | -953.2 | 999999 | |
| 5.81 | -26.00 | 3.55 | -26.00 | -22.38 | 135.86 | -24.13 | 139.79 | 0.5877 | -1041.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.84 | -23.14 | 135.72 | -24.27 | 140.52 | 0.5967 | -705.0 | -548.7 | |
| 1.18 | -26.00 | 0.72 | -26.00 | -22.36 | 135.61 | -24.38 | 139.48 | 0.5897 | -969.0 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.46 | -23.05 | 135.37 | -24.62 | 140.02 | 0.5989 | -608.0 | -636.4 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -22.88 | 135.33 | -24.66 | 139.78 | 0.5975 | -746.0 | -650.9 | |
| 0.00 | 1.54 | 0.00 | 0.95 | -23.02 | 135.16 | -24.83 | 139.76 | 0.6005 | -592.0 | -482.4 | |
| 3.72 | 7.35 | 2.29 | 4.52 | -22.54 | 135.21 | -24.78 | 139.25 | 0.5952 | -843.5 | -756.2 | |
| 0.00 | 1.63 | 0.00 | 1.01 | -22.75 | 135.10 | -24.89 | 139.38 | 0.5983 | -881.0 | -705.7 | |
| 6.72 | 8.44 | 4.16 | 5.23 | -22.70 | 134.67 | -25.32 | 138.85 | 0.6017 | -841.5 | -575.3 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -23.81 | 134.37 | -25.62 | 139.82 | 0.6153 | -567.0 | -552.0 | |
| 1.54 | 2.45 | 0.97 | 1.54 | -24.02 | 134.29 | -25.70 | 139.97 | 0.6181 | -738.8 | -611.6 | |
| 0.00 | 2.45 | 0.00 | 1.55 | -24.24 | 134.05 | -25.93 | 139.97 | 0.6223 | -767.0 | -623.4 | |
| 0.00 | 1.63 | 0.00 | 1.04 | -24.59 | 133.98 | -26.01 | 140.29 | 0.6264 | -439.0 | -323.5 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -24.18 | 133.73 | -26.26 | 139.57 | 0.6246 | -683.0 | -632.2 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -23.42 | 133.79 | -26.20 | 138.75 | 0.6168 | -636.0 | -557.1 | |
| 0.00 | 6.99 | 0.00 | 4.43 | -23.68 | 133.13 | -26.86 | 138.39 | 0.6252 | -772.0 | -599.8 | |
| 0.00 | 3.63 | 0.00 | 2.31 | -24.17 | 132.99 | -27.00 | 138.80 | 0.6312 | -640.0 | -560.3 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -23.98 | 132.69 | -27.30 | 138.28 | 0.6319 | -529.0 | -458.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
