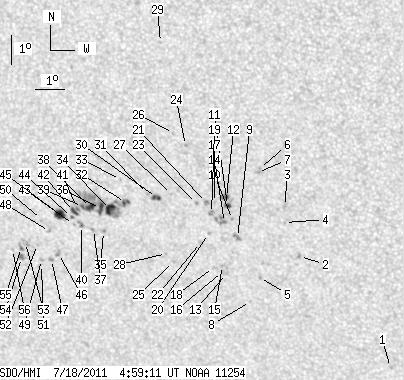

SDO HMI 2011-07-18 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.85 | 175.75 | 28.27 | 106.02 | -22.74 | 137.00 | -21.89 | 143.00 | 0.5723 | -116.8 | -155.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-18 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.77 | -27.72 | 145.60 | -13.29 | 159.10 | 0.5725 | -375.0 | -360.4 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -23.86 | 142.91 | -15.99 | 152.00 | 0.5386 | 828.0 | 667.7 | |
| 0.00 | 1.82 | 0.00 | 1.05 | -22.14 | 142.60 | -16.29 | 149.83 | 0.5191 | 837.0 | 674.9 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -22.69 | 142.53 | -16.36 | 150.30 | 0.5265 | 693.0 | 500.4 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -24.62 | 141.40 | -17.49 | 150.60 | 0.5587 | 773.0 | 622.0 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -20.87 | 141.90 | -17.00 | 147.38 | 0.5087 | 820.0 | 643.5 | |
| 0.00 | 2.18 | 0.00 | 1.25 | -21.01 | 141.81 | -17.08 | 147.41 | 0.5111 | 778.0 | 662.6 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -25.48 | 140.96 | -17.93 | 150.81 | 0.5722 | 547.0 | 446.1 | |
| 0.00 | 4.08 | 0.00 | 2.41 | -23.25 | 140.83 | -18.06 | 148.43 | 0.5462 | 811.0 | 645.4 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -22.64 | 140.74 | -18.15 | 147.65 | 0.5395 | 992.0 | 760.3 | |
| 2.45 | 9.35 | 1.43 | 5.46 | -22.16 | 140.63 | -18.26 | 146.98 | 0.5346 | 967.9 | 680.3 | |
| 1.82 | -11.00 | 1.06 | -11.00 | -21.89 | 140.63 | -18.26 | 146.68 | 0.5313 | 1058.9 | 999999 | |
| 0.00 | 1.72 | 0.00 | 1.03 | -24.51 | 140.26 | -18.64 | 148.94 | 0.5657 | 686.0 | 527.0 | |
| 1.54 | 7.08 | 0.91 | 4.17 | -22.75 | 140.45 | -18.44 | 147.36 | 0.5431 | 682.8 | 618.0 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -24.24 | 140.16 | -18.73 | 148.53 | 0.5631 | 717.0 | 473.6 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -24.45 | 140.13 | -18.77 | 148.70 | 0.5659 | 677.0 | 617.8 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -22.07 | 140.19 | -18.70 | 146.27 | 0.5371 | 731.0 | 561.6 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -24.32 | 139.83 | -19.06 | 148.17 | 0.5666 | 587.0 | 439.7 | |
| 0.00 | 2.81 | 0.00 | 1.66 | -22.45 | 140.04 | -18.86 | 146.47 | 0.5429 | 631.0 | 617.1 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -23.14 | 139.83 | -19.06 | 146.94 | 0.5527 | 698.0 | 520.0 | |
| 0.00 | 2.45 | 0.00 | 1.44 | -22.08 | 139.91 | -18.98 | 145.89 | 0.5395 | 830.0 | 678.2 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -23.46 | 139.50 | -19.39 | 146.85 | 0.5590 | 611.0 | 512.0 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -22.12 | 139.56 | -19.33 | 145.46 | 0.5429 | 765.0 | 596.2 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -20.16 | 139.45 | -19.45 | 142.99 | 0.5212 | 715.0 | 551.8 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -24.15 | 138.43 | -20.46 | 146.20 | 0.5755 | 572.0 | 479.6 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -19.77 | 139.08 | -19.81 | 142.00 | 0.5200 | 758.0 | 598.0 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -21.84 | 138.73 | -20.16 | 144.02 | 0.5467 | 522.0 | 302.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -23.88 | 138.23 | -20.66 | 145.65 | 0.5740 | 563.0 | 487.5 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -16.77 | 139.00 | -19.89 | 137.84 | 0.4873 | 777.0 | 569.9 | |
| 4.27 | 4.81 | 2.53 | 2.86 | -21.96 | 138.18 | -20.71 | 143.44 | 0.5527 | 734.4 | 635.3 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -21.83 | 137.89 | -21.01 | 142.91 | 0.5539 | 593.0 | 512.9 | |
| 3.72 | 70.44 | 2.23 | 42.58 | -22.16 | 137.06 | -21.84 | 142.26 | 0.5649 | -823.7 | -612.9 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -21.38 | 137.01 | -21.89 | 141.26 | 0.5569 | -815.0 | -595.5 | |
| 7.53 | -32.00 | 4.55 | -32.00 | -22.42 | 136.48 | -22.41 | 141.85 | 0.5727 | -989.3 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.11 | -23.19 | 136.09 | -22.80 | 142.27 | 0.5843 | -807.0 | -676.6 | |
| 5.27 | -32.00 | 3.18 | -32.00 | -22.40 | 136.13 | -22.77 | 141.40 | 0.5756 | -931.5 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.39 | -23.13 | 135.74 | -23.15 | 141.80 | 0.5867 | -694.0 | -544.4 | |
| 5.17 | -32.00 | 3.14 | -32.00 | -22.37 | 135.77 | -23.12 | 140.95 | 0.5786 | -1068.3 | 999999 | |
| 0.64 | -32.00 | 0.39 | -32.00 | -22.35 | 135.49 | -23.40 | 140.59 | 0.5809 | -873.9 | 999999 | |
| 0.54 | 2.81 | 0.33 | 1.72 | -23.01 | 135.33 | -23.56 | 141.18 | 0.5891 | -786.7 | -727.6 | |
| 1.27 | -32.00 | 0.77 | -32.00 | -22.42 | 135.30 | -23.60 | 140.46 | 0.5834 | -812.8 | 999999 | |
| 3.00 | -32.00 | 1.83 | -32.00 | -22.53 | 135.13 | -23.76 | 140.40 | 0.5860 | -847.1 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -22.98 | 135.05 | -23.84 | 140.82 | 0.5913 | -650.0 | -561.8 | |
| 1.09 | 1.54 | 0.67 | 0.94 | -22.74 | 135.02 | -23.87 | 140.51 | 0.5891 | -625.4 | -552.2 | |
| 7.63 | 11.44 | 4.68 | 7.02 | -22.65 | 134.60 | -24.29 | 139.94 | 0.5920 | -838.2 | -430.2 | |
| 0.00 | 3.36 | 0.00 | 2.09 | -24.01 | 134.30 | -24.59 | 141.16 | 0.6084 | -768.0 | -697.6 | |
| 0.00 | 2.00 | 0.00 | 1.25 | -24.23 | 134.00 | -24.90 | 141.08 | 0.6133 | -748.0 | -680.5 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -23.25 | 134.12 | -24.77 | 140.10 | 0.6024 | -722.0 | -599.8 | |
| 0.00 | 2.00 | 0.00 | 1.25 | -24.24 | 133.62 | -25.27 | 140.69 | 0.6166 | -759.0 | -567.0 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -22.85 | 133.91 | -24.98 | 139.40 | 0.6003 | -478.0 | -432.5 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -24.41 | 133.59 | -25.31 | 140.85 | 0.6187 | -344.0 | -403.0 | |
| 0.00 | 0.54 | 0.00 | 0.34 | -23.72 | 133.59 | -25.31 | 140.06 | 0.6118 | -777.0 | -749.7 | |
| 0.00 | 6.45 | 0.00 | 4.04 | -23.67 | 133.15 | -25.74 | 139.54 | 0.6151 | -800.0 | -622.7 | |
| 0.00 | 3.90 | 0.00 | 2.47 | -24.20 | 132.89 | -26.00 | 139.87 | 0.6226 | -713.0 | -530.4 | |
| 0.91 | 2.72 | 0.57 | 1.71 | -23.85 | 132.97 | -25.93 | 139.55 | 0.6186 | -560.1 | -559.0 | |
| 0.00 | 1.09 | 0.00 | 0.69 | -23.93 | 132.61 | -26.28 | 139.28 | 0.6225 | -621.0 | -416.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
