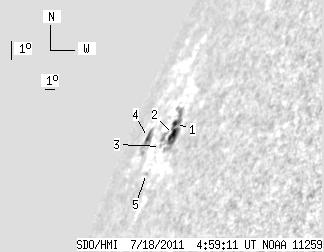

SDO HMI 2011-07-18 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.99 | 50.65 | 20.83 | 134.70 | 24.58 | 78.62 | -80.28 | 65.81 | 0.9828 | -280.9 | 39.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-18 04:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.63 | 32.95 | 3.93 | 78.55 | 25.07 | 79.91 | -78.99 | 65.33 | 0.9794 | -274.9 | -99.8 | |
| 4.45 | -1.00 | 10.34 | -1.00 | 24.73 | 80.35 | -78.54 | 65.67 | 0.9779 | -415.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 2.77 | 24.24 | 79.18 | -79.71 | 66.17 | 0.9816 | 385.0 | 381.2 | |
| 1.91 | 15.34 | 6.56 | 50.06 | 24.30 | 76.04 | -82.85 | 66.08 | 0.9899 | -284.3 | 203.5 | |
| 0.00 | 1.27 | 0.00 | 3.32 | 23.31 | 78.80 | -80.09 | 67.12 | 0.9828 | 447.0 | 286.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
