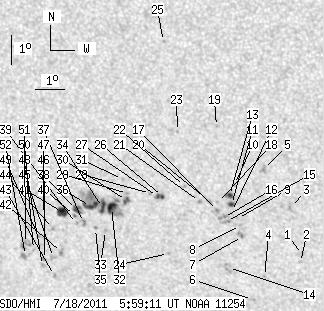

SDO HMI 2011-07-18 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.75 | 175.69 | 26.29 | 105.61 | -22.71 | 136.90 | -21.45 | 143.53 | 0.5681 | -165.0 | -167.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-18 05:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.18 | 0.00 | 1.28 | -23.84 | 142.88 | -15.47 | 152.75 | 0.5349 | 825.0 | 585.3 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -24.12 | 142.77 | -15.57 | 152.86 | 0.5392 | 701.0 | 439.3 | |
| 0.00 | 3.54 | 0.00 | 2.04 | -22.23 | 142.66 | -15.69 | 150.84 | 0.5158 | 758.0 | 655.1 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -24.64 | 141.45 | -16.90 | 151.45 | 0.5548 | 783.0 | 625.7 | |
| 0.00 | 4.09 | 0.00 | 2.34 | -20.96 | 141.88 | -16.46 | 148.30 | 0.5056 | 886.0 | 682.4 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -25.46 | 140.91 | -17.44 | 151.47 | 0.5686 | 531.0 | 412.3 | |
| 1.09 | 3.00 | 0.64 | 1.76 | -23.27 | 140.87 | -17.47 | 149.27 | 0.5420 | 721.3 | 688.5 | |
| 0.00 | 1.54 | 0.00 | 0.91 | -22.89 | 140.85 | -17.49 | 148.86 | 0.5375 | 849.0 | 601.4 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -22.65 | 140.78 | -17.57 | 148.50 | 0.5352 | 776.0 | 600.5 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -21.49 | 140.83 | -17.52 | 147.31 | 0.5206 | 590.0 | 485.7 | |
| 2.36 | 3.00 | 1.38 | 1.75 | -22.18 | 140.63 | -17.71 | 147.79 | 0.5305 | 965.5 | 721.6 | |
| 0.00 | 0.36 | 0.00 | 0.21 | -22.42 | 140.60 | -17.74 | 148.00 | 0.5337 | 501.0 | 583.8 | |
| 2.36 | 4.63 | 1.37 | 2.70 | -21.87 | 140.60 | -17.74 | 147.41 | 0.5270 | 1009.8 | 728.6 | |
| 0.00 | 4.99 | 0.00 | 2.98 | -24.36 | 140.22 | -18.12 | 149.48 | 0.5601 | 624.0 | 576.1 | |
| 0.00 | 3.27 | 0.00 | 1.92 | -22.77 | 140.38 | -17.96 | 148.06 | 0.5396 | 704.0 | 559.1 | |
| 0.00 | 3.27 | 0.00 | 1.92 | -22.63 | 140.30 | -18.05 | 147.80 | 0.5387 | 707.0 | 673.7 | |
| 0.00 | 2.09 | 0.00 | 1.22 | -22.40 | 140.12 | -18.23 | 147.29 | 0.5372 | 872.0 | 728.8 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -22.12 | 140.16 | -18.19 | 147.05 | 0.5336 | 701.0 | 538.6 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -19.55 | 140.44 | -17.90 | 144.47 | 0.5004 | 200.0 | 188.8 | |
| 0.00 | 2.09 | 0.00 | 1.22 | -22.10 | 139.88 | -18.46 | 146.63 | 0.5355 | 875.0 | 692.8 | |
| 0.00 | 1.45 | 0.00 | 0.85 | -22.11 | 139.53 | -18.81 | 146.16 | 0.5385 | 787.0 | 584.1 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -21.61 | 139.08 | -19.26 | 144.97 | 0.5364 | 842.0 | 687.1 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -19.75 | 139.09 | -19.26 | 142.75 | 0.5149 | 686.0 | 527.5 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -23.93 | 138.17 | -20.18 | 146.33 | 0.5708 | 730.0 | 613.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -16.78 | 138.96 | -19.39 | 138.59 | 0.4824 | 780.0 | 601.6 | |
| 1.36 | 4.27 | 0.81 | 2.52 | -21.97 | 138.26 | -20.08 | 144.28 | 0.5476 | 671.9 | 749.8 | |
| 0.54 | -26.00 | 0.32 | -26.00 | -21.98 | 138.09 | -20.26 | 144.06 | 0.5491 | 876.7 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -21.88 | 137.86 | -20.49 | 143.64 | 0.5500 | 645.0 | 485.6 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -21.91 | 137.04 | -21.30 | 142.63 | 0.5574 | -684.0 | -450.6 | |
| 3.54 | 4.81 | 2.11 | 2.87 | -22.15 | 136.97 | -21.38 | 142.82 | 0.5607 | -848.4 | -724.7 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -21.43 | 136.94 | -21.40 | 141.94 | 0.5531 | -760.0 | -527.5 | |
| 7.81 | 58.46 | 4.69 | 35.21 | -22.40 | 136.40 | -21.95 | 142.40 | 0.5685 | -985.3 | -594.0 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -23.20 | 136.04 | -22.30 | 142.89 | 0.5802 | -828.0 | -682.4 | |
| 4.90 | -32.00 | 2.95 | -32.00 | -22.41 | 136.07 | -22.27 | 142.02 | 0.5715 | -901.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -23.15 | 135.69 | -22.65 | 142.41 | 0.5826 | -653.0 | -617.5 | |
| 6.90 | -32.00 | 4.17 | -32.00 | -22.39 | 135.65 | -22.70 | 141.48 | 0.5750 | -997.8 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.99 | -22.95 | 135.30 | -23.05 | 141.72 | 0.5840 | -845.0 | -705.1 | |
| 4.45 | 7.08 | 2.70 | 4.30 | -22.51 | 135.12 | -23.22 | 141.00 | 0.5810 | -846.7 | -860.3 | |
| 0.00 | 1.18 | 0.00 | 0.72 | -23.00 | 135.04 | -23.31 | 141.46 | 0.5868 | -706.0 | -614.3 | |
| 0.36 | 1.18 | 0.22 | 0.72 | -22.72 | 135.02 | -23.33 | 141.12 | 0.5841 | -735.0 | -610.9 | |
| 8.08 | 9.26 | 4.93 | 5.65 | -22.63 | 134.60 | -23.75 | 140.53 | 0.5869 | -835.8 | -467.3 | |
| 0.00 | 3.00 | 0.00 | 1.86 | -24.02 | 134.30 | -24.05 | 141.78 | 0.6039 | -793.0 | -693.6 | |
| 0.00 | 1.82 | 0.00 | 1.14 | -24.84 | 133.87 | -24.47 | 142.22 | 0.6159 | -698.0 | -538.5 | |
| 0.00 | 1.82 | 0.00 | 1.12 | -23.20 | 134.17 | -24.18 | 140.70 | 0.5966 | -753.0 | -612.3 | |
| 0.00 | 2.72 | 0.00 | 1.70 | -24.21 | 133.97 | -24.38 | 141.62 | 0.6086 | -759.0 | -667.6 | |
| 0.00 | 1.63 | 0.00 | 1.02 | -24.29 | 133.62 | -24.73 | 141.33 | 0.6125 | -814.0 | -648.9 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -22.90 | 133.90 | -24.45 | 140.05 | 0.5959 | -543.0 | -491.9 | |
| 0.00 | 2.27 | 0.00 | 1.42 | -24.50 | 133.50 | -24.85 | 141.44 | 0.6156 | -479.0 | -384.9 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -23.49 | 133.56 | -24.79 | 140.37 | 0.6050 | -860.0 | -775.8 | |
| 0.00 | 1.00 | 0.00 | 0.62 | -23.95 | 133.28 | -25.06 | 140.59 | 0.6120 | -549.0 | -482.1 | |
| 0.00 | 7.72 | 0.00 | 4.83 | -23.76 | 133.03 | -25.32 | 140.09 | 0.6123 | -761.0 | -617.8 | |
| 0.00 | 4.72 | 0.00 | 2.97 | -24.17 | 132.94 | -25.41 | 140.47 | 0.6172 | -482.0 | -536.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
