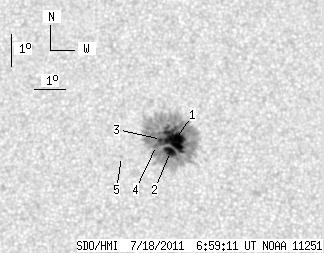

SDO HMI 2011-07-18 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.95 | 231.68 | 18.56 | 119.63 | 16.49 | 169.18 | 11.39 | 317.62 | 0.2821 | -1306.1 | -445.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-18 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.87 | 230.77 | 13.88 | 119.16 | 16.57 | 169.26 | 11.47 | 317.61 | 0.2839 | -1333.4 | -445.0 | |
| 7.63 | -1.00 | 3.93 | -1.00 | 16.23 | 169.11 | 11.32 | 317.12 | 0.2781 | -1414.1 | 999999 | |
| 1.18 | -1.00 | 0.61 | -1.00 | 16.60 | 168.84 | 11.05 | 318.73 | 0.2796 | -1213.5 | 999999 | |
| 0.27 | -1.00 | 0.14 | -1.00 | 16.42 | 168.67 | 10.87 | 318.71 | 0.2755 | -1149.7 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 16.09 | 167.53 | 9.73 | 320.96 | 0.2589 | -739.0 | -491.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
