SDO HMI 2011-07-18 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.70 | 48.29 | 28.98 | 116.75 | 24.49 | 78.68 | -79.11 | 65.91 | 0.9793 | -105.5 | -56.5 | |
|
previous
or next observation for the same group /

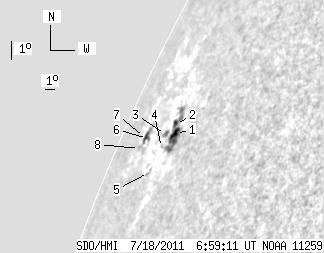

back to the solar disc SDO HMI 2011-07-18 06:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.63 | 28.87 | 9.97 | 62.66 | 24.72 | 80.40 | -77.40 | 65.66 | 0.9739 | -460.4 | -253.4 | |
| 1.63 | -1.00 | 3.65 | -1.00 | 24.98 | 79.84 | -77.96 | 65.41 | 0.9759 | -238.4 | 999999 | |
| 1.72 | 3.45 | 4.05 | 8.11 | 24.59 | 79.04 | -78.75 | 65.82 | 0.9786 | 468.5 | 423.6 | |
| 0.00 | 1.36 | 0.00 | 3.15 | 24.17 | 79.30 | -78.50 | 66.24 | 0.9777 | 336.0 | 281.9 | |
| 0.00 | 2.18 | 0.00 | 5.18 | 23.31 | 78.97 | -78.83 | 67.12 | 0.9788 | 514.0 | 360.9 | |
| 1.72 | 9.71 | 5.08 | 29.09 | 24.24 | 76.35 | -81.44 | 66.16 | 0.9865 | 344.0 | 258.5 | |
| 2.00 | -6.00 | 6.23 | -6.00 | 24.23 | 75.69 | -82.11 | 66.17 | 0.9882 | -339.3 | 999999 | |
| 0.00 | 2.72 | 0.00 | 8.56 | 23.86 | 75.66 | -82.14 | 66.55 | 0.9883 | -296.0 | -187.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
