SDO HMI 2011-07-18 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.39 | 181.43 | 23.20 | 106.79 | -22.71 | 136.32 | -18.18 | 147.87 | 0.5414 | -136.9 | -257.5 | |
|
previous
or next observation for the same group /

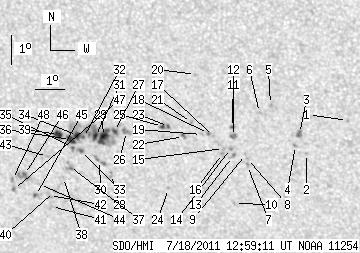

back to the solar disc SDO HMI 2011-07-18 12:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.63 | 144.40 | -10.10 | 159.72 | 0.4722 | 646.0 | 557.7 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -22.79 | 142.94 | -11.57 | 158.05 | 0.4965 | 696.0 | 484.2 | |
| 0.00 | 3.90 | 0.00 | 2.21 | -22.10 | 142.76 | -11.74 | 157.18 | 0.4881 | 940.0 | 861.9 | |
| 0.00 | 1.91 | 0.00 | 1.09 | -22.52 | 142.59 | -11.91 | 157.24 | 0.4948 | 699.0 | 579.6 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -21.13 | 141.87 | -12.63 | 154.76 | 0.4803 | 602.0 | 585.6 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -21.41 | 141.48 | -13.03 | 154.35 | 0.4866 | 605.0 | 470.9 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -23.24 | 140.89 | -13.61 | 155.07 | 0.5150 | 796.0 | 622.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -23.00 | 140.92 | -13.59 | 154.89 | 0.5116 | 802.0 | 571.7 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -22.86 | 140.86 | -13.64 | 154.68 | 0.5101 | 861.0 | 666.9 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -24.57 | 140.30 | -14.20 | 155.31 | 0.5363 | 630.0 | 487.4 | |
| 0.00 | 3.36 | 0.00 | 1.92 | -22.25 | 140.52 | -13.99 | 153.55 | 0.5042 | 1058.0 | 849.4 | |
| 1.54 | 1.82 | 0.88 | 1.04 | -21.94 | 140.51 | -13.99 | 153.25 | 0.5002 | 772.1 | 733.7 | |
| 0.00 | 2.45 | 0.00 | 1.41 | -22.94 | 140.41 | -14.09 | 154.03 | 0.5141 | 655.0 | 574.8 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -22.66 | 140.37 | -14.13 | 153.71 | 0.5107 | 922.0 | 791.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -22.67 | 140.13 | -14.37 | 153.34 | 0.5124 | 787.0 | 578.8 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -22.84 | 140.08 | -14.42 | 153.42 | 0.5150 | 650.0 | 558.4 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -22.26 | 139.84 | -14.67 | 152.48 | 0.5091 | 749.0 | 559.6 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -22.16 | 139.68 | -14.83 | 152.13 | 0.5089 | 749.0 | 577.9 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -22.20 | 139.43 | -15.07 | 151.78 | 0.5111 | 676.0 | 548.3 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -20.17 | 139.44 | -15.06 | 149.66 | 0.4848 | 458.0 | 426.5 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -21.80 | 139.14 | -15.37 | 150.91 | 0.5081 | 1024.0 | 850.5 | |
| 0.00 | 2.54 | 0.00 | 1.47 | -22.29 | 138.81 | -15.69 | 150.90 | 0.5167 | 690.0 | 620.8 | |
| 1.36 | 4.90 | 0.79 | 2.83 | -21.96 | 138.33 | -16.17 | 149.84 | 0.5160 | 760.7 | 578.5 | |
| 0.00 | 1.27 | 0.00 | 0.75 | -24.10 | 138.07 | -16.44 | 151.59 | 0.5449 | 717.0 | 513.5 | |
| 1.72 | -23.00 | 1.00 | -23.00 | -21.96 | 138.13 | -16.37 | 149.53 | 0.5176 | 717.4 | 999999 | |
| 0.00 | 5.35 | 0.00 | 3.12 | -22.16 | 136.86 | -17.64 | 147.88 | 0.5299 | -593.0 | -459.4 | |
| 1.91 | 79.77 | 1.11 | 46.93 | -22.17 | 136.45 | -18.05 | 147.30 | 0.5333 | -804.9 | -590.4 | |
| 0.00 | 2.36 | 0.00 | 1.40 | -23.66 | 136.14 | -18.37 | 148.45 | 0.5536 | 740.0 | 533.3 | |
| 10.89 | -27.00 | 6.39 | -27.00 | -22.36 | 136.08 | -18.43 | 146.98 | 0.5385 | -978.5 | 999999 | |
| 0.00 | 5.54 | 0.00 | 3.28 | -23.19 | 135.78 | -18.72 | 147.47 | 0.5507 | -615.0 | -658.9 | |
| 2.90 | -27.00 | 1.71 | -27.00 | -22.36 | 135.76 | -18.74 | 146.55 | 0.5411 | -1069.0 | 999999 | |
| 0.91 | -27.00 | 0.54 | -27.00 | -22.41 | 135.34 | -19.17 | 146.02 | 0.5451 | -954.9 | 999999 | |
| 1.54 | 5.54 | 0.91 | 3.29 | -22.86 | 135.20 | -19.30 | 146.33 | 0.5515 | -774.6 | -633.3 | |
| 2.27 | -27.00 | 1.34 | -27.00 | -22.35 | 135.14 | -19.37 | 145.68 | 0.5460 | -1147.2 | 999999 | |
| 1.27 | -33.00 | 0.75 | -33.00 | -22.76 | 134.90 | -19.60 | 145.82 | 0.5528 | -620.6 | 999999 | |
| 5.08 | -27.00 | 3.01 | -27.00 | -22.49 | 134.87 | -19.63 | 145.48 | 0.5499 | -916.0 | 999999 | |
| 0.00 | 5.17 | 0.00 | 3.09 | -23.42 | 134.69 | -19.81 | 146.27 | 0.5621 | -734.0 | -674.3 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -23.81 | 134.42 | -20.08 | 146.33 | 0.5688 | -594.0 | -503.9 | |
| 5.54 | 8.53 | 3.28 | 5.06 | -22.33 | 134.47 | -20.03 | 144.78 | 0.5514 | -833.7 | -499.5 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -24.31 | 134.02 | -20.49 | 146.34 | 0.5777 | -771.0 | -646.2 | |
| 0.00 | 2.81 | 0.00 | 1.72 | -24.84 | 133.82 | -20.69 | 146.65 | 0.5852 | -740.0 | -478.1 | |
| 0.00 | 3.99 | 0.00 | 2.43 | -24.46 | 133.81 | -20.69 | 146.24 | 0.5809 | -542.0 | -443.5 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -23.10 | 133.97 | -20.54 | 144.98 | 0.5644 | -813.0 | -557.9 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -24.08 | 133.52 | -20.98 | 145.48 | 0.5791 | -713.0 | -567.0 | |
| 0.64 | 2.00 | 0.39 | 1.22 | -24.47 | 133.31 | -21.20 | 145.63 | 0.5851 | -749.6 | -598.5 | |
| 1.82 | 9.26 | 1.10 | 5.62 | -23.75 | 133.04 | -21.46 | 144.53 | 0.5793 | -832.8 | -693.6 | |
| 0.00 | 2.63 | 0.00 | 1.61 | -24.29 | 132.55 | -21.95 | 144.51 | 0.5892 | -652.0 | -541.8 | |
| 0.00 | 2.18 | 0.00 | 1.33 | -23.94 | 132.58 | -21.93 | 144.17 | 0.5852 | -706.0 | -550.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
