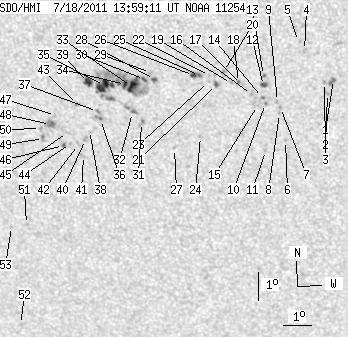

SDO HMI 2011-07-18 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.92 | 187.02 | 24.56 | 109.92 | -22.84 | 136.12 | -17.83 | 148.51 | 0.5402 | -119.8 | -258.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-18 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.36 | 3.72 | 0.21 | 2.10 | -22.02 | 142.85 | -11.10 | 158.24 | 0.4833 | 947.0 | 828.3 | |
| 0.00 | 2.63 | 0.00 | 1.50 | -22.51 | 142.61 | -11.34 | 158.21 | 0.4914 | 666.0 | 546.6 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -22.13 | 142.54 | -11.41 | 157.78 | 0.4865 | 774.0 | 615.1 | |
| 0.00 | 2.18 | 0.00 | 1.22 | -21.06 | 141.96 | -11.99 | 155.81 | 0.4750 | 688.0 | 597.0 | |
| 0.00 | 0.54 | 0.00 | 0.31 | -20.75 | 141.78 | -12.17 | 155.22 | 0.4720 | 511.0 | 591.7 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -24.16 | 141.03 | -12.92 | 156.95 | 0.5231 | 694.0 | 505.9 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -23.02 | 140.97 | -12.98 | 155.90 | 0.5081 | 816.0 | 622.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -23.22 | 140.92 | -13.03 | 155.99 | 0.5112 | 782.0 | 612.5 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -22.81 | 140.89 | -13.06 | 155.58 | 0.5058 | 814.0 | 585.5 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -22.89 | 140.48 | -13.47 | 154.98 | 0.5094 | 777.0 | 696.3 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -24.52 | 140.30 | -13.65 | 156.12 | 0.5323 | 684.0 | 496.9 | |
| 2.99 | 3.45 | 1.71 | 1.97 | -22.27 | 140.47 | -13.48 | 154.40 | 0.5012 | 867.9 | 781.2 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -21.93 | 140.50 | -13.45 | 154.14 | 0.4964 | 852.0 | 813.1 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -22.69 | 140.40 | -13.55 | 154.66 | 0.5072 | 866.0 | 745.1 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -22.96 | 140.20 | -13.75 | 154.59 | 0.5122 | 566.0 | 452.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -22.59 | 140.03 | -13.92 | 153.98 | 0.5083 | 673.0 | 620.1 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -22.25 | 139.73 | -14.22 | 153.18 | 0.5059 | 509.0 | 477.1 | |
| 0.00 | 1.54 | 0.00 | 0.88 | -22.19 | 139.63 | -14.32 | 152.96 | 0.5057 | 752.0 | 609.5 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -22.23 | 139.39 | -14.56 | 152.61 | 0.5079 | 672.0 | 462.9 | |
| 0.00 | 1.81 | 0.00 | 1.04 | -21.82 | 139.16 | -14.79 | 151.85 | 0.5042 | 954.0 | 765.8 | |
| 2.00 | 3.18 | 1.15 | 1.83 | -22.27 | 138.87 | -15.08 | 151.84 | 0.5121 | 707.5 | 580.8 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -21.97 | 138.67 | -15.28 | 151.22 | 0.5096 | 543.0 | 450.9 | |
| 0.00 | 0.73 | 0.00 | 0.42 | -22.18 | 138.61 | -15.34 | 151.34 | 0.5127 | 591.0 | 451.5 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -24.08 | 138.11 | -15.84 | 152.43 | 0.5406 | 360.0 | 444.8 | |
| 1.09 | 5.26 | 0.63 | 3.03 | -21.98 | 138.33 | -15.62 | 150.69 | 0.5122 | 767.7 | 695.6 | |
| 2.45 | -25.00 | 1.41 | -25.00 | -21.98 | 138.12 | -15.83 | 150.38 | 0.5138 | 705.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -24.52 | 137.14 | -16.81 | 151.47 | 0.5528 | 535.0 | 436.6 | |
| 1.63 | 2.54 | 0.95 | 1.48 | -22.15 | 136.76 | -17.19 | 148.53 | 0.5262 | -699.3 | -701.5 | |
| 0.00 | 1.72 | 0.00 | 1.00 | -21.92 | 136.66 | -17.30 | 148.11 | 0.5242 | -708.0 | -626.4 | |
| 1.45 | 90.38 | 0.85 | 53.04 | -22.16 | 136.42 | -17.53 | 148.03 | 0.5290 | -824.1 | -534.2 | |
| 0.00 | 3.27 | 0.00 | 1.93 | -23.65 | 136.11 | -17.84 | 149.16 | 0.5495 | 656.0 | 555.9 | |
| 0.82 | 6.72 | 0.48 | 3.97 | -23.31 | 135.85 | -18.11 | 148.44 | 0.5474 | -665.9 | -615.0 | |
| 5.44 | -30.00 | 3.19 | -30.00 | -22.41 | 135.93 | -18.02 | 147.62 | 0.5359 | -1018.2 | 999999 | |
| 3.45 | -30.00 | 2.02 | -30.00 | -22.35 | 135.73 | -18.22 | 147.27 | 0.5367 | -1043.6 | 999999 | |
| 12.80 | -30.00 | 7.54 | -30.00 | -22.40 | 135.00 | -18.95 | 146.30 | 0.5433 | -956.3 | 999999 | |
| 0.73 | 2.81 | 0.43 | 1.68 | -23.58 | 134.68 | -19.27 | 147.15 | 0.5597 | -817.6 | -727.3 | |
| 0.00 | 1.18 | 0.00 | 0.70 | -23.31 | 134.62 | -19.33 | 146.77 | 0.5570 | -844.0 | -697.5 | |
| 0.00 | 0.73 | 0.00 | 0.44 | -23.97 | 134.23 | -19.72 | 146.97 | 0.5678 | -252.0 | -398.4 | |
| 5.26 | 6.44 | 3.11 | 3.81 | -22.32 | 134.45 | -19.50 | 145.46 | 0.5468 | -815.2 | -741.1 | |
| 0.00 | 2.18 | 0.00 | 1.31 | -24.29 | 134.04 | -19.91 | 147.06 | 0.5730 | -678.0 | -665.0 | |
| 0.00 | 2.00 | 0.00 | 1.21 | -24.86 | 133.87 | -20.08 | 147.43 | 0.5807 | -435.0 | -480.6 | |
| 0.00 | 1.72 | 0.00 | 1.04 | -24.47 | 133.76 | -20.19 | 146.89 | 0.5773 | -558.0 | -490.3 | |
| 0.00 | 1.91 | 0.00 | 1.14 | -23.08 | 133.95 | -20.00 | 145.65 | 0.5598 | -811.0 | -601.5 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -24.45 | 133.48 | -20.47 | 146.51 | 0.5792 | -743.0 | -642.6 | |
| 0.00 | 1.27 | 0.00 | 0.77 | -24.07 | 133.43 | -20.52 | 146.05 | 0.5752 | -531.0 | -495.2 | |
| 1.45 | 1.81 | 0.88 | 1.10 | -24.53 | 133.21 | -20.74 | 146.26 | 0.5821 | -652.9 | -716.8 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -23.49 | 133.10 | -20.85 | 145.01 | 0.5713 | -535.0 | -447.7 | |
| 0.00 | 7.17 | 0.00 | 4.34 | -23.81 | 132.87 | -21.08 | 145.07 | 0.5768 | -988.0 | -755.7 | |
| 0.00 | 2.90 | 0.00 | 1.77 | -24.30 | 132.53 | -21.42 | 145.18 | 0.5850 | -680.0 | -522.7 | |
| 0.00 | 1.63 | 0.00 | 0.99 | -23.96 | 132.49 | -21.46 | 144.75 | 0.5816 | -608.0 | -548.6 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -27.38 | 131.31 | -22.64 | 146.90 | 0.6282 | -239.0 | -210.0 | |
| 0.00 | 1.54 | 0.00 | 1.03 | -31.08 | 130.19 | -23.76 | 149.14 | 0.6752 | -291.0 | -248.4 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -27.47 | 130.73 | -23.22 | 146.34 | 0.6335 | -531.0 | -443.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
