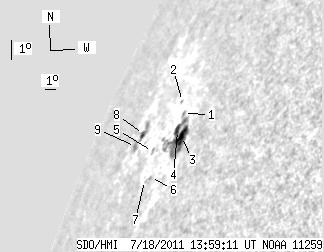

SDO HMI 2011-07-18 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.16 | 67.88 | 28.96 | 127.22 | 24.60 | 78.86 | -75.09 | 65.72 | 0.9644 | -254.5 | -29.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-18 13:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.27 | 0.00 | 4.06 | 25.41 | 79.53 | -74.42 | 64.87 | 0.9623 | -222.0 | -189.3 | |
| 0.00 | 1.00 | 0.00 | 1.87 | 25.76 | 78.78 | -75.17 | 64.54 | 0.9655 | 63.0 | 123.8 | |
| 10.44 | 46.46 | 17.79 | 81.02 | 24.71 | 80.44 | -73.51 | 65.56 | 0.9581 | -532.9 | -82.5 | |
| 3.63 | -3.00 | 6.43 | -3.00 | 24.85 | 79.72 | -74.23 | 65.44 | 0.9613 | -223.1 | 999999 | |
| 0.00 | 2.18 | 0.00 | 4.29 | 24.01 | 77.85 | -76.10 | 66.37 | 0.9690 | 469.0 | 402.2 | |
| 0.00 | 1.27 | 0.00 | 2.35 | 23.23 | 78.93 | -75.02 | 67.15 | 0.9645 | 324.0 | 309.2 | |
| 0.00 | 0.36 | 0.00 | 0.69 | 23.09 | 78.37 | -75.58 | 67.31 | 0.9668 | 358.0 | 373.2 | |
| 2.09 | 9.44 | 4.74 | 21.50 | 24.41 | 75.66 | -78.29 | 65.99 | 0.9770 | 276.8 | 127.4 | |
| 0.00 | 4.90 | 0.00 | 11.44 | 23.98 | 75.26 | -78.69 | 66.44 | 0.9783 | -286.0 | -221.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
