SDO HMI 2011-07-18 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.67 | 272.31 | 16.65 | 143.13 | 16.72 | 168.90 | 15.50 | 309.76 | 0.3350 | -647.3 | -355.3 | |
|
previous
or next observation for the same group /

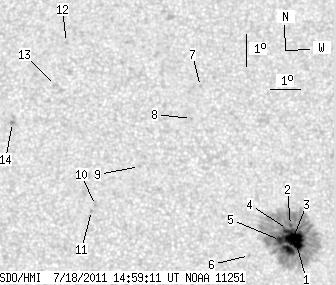

back to the solar disc SDO HMI 2011-07-18 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.87 | 259.96 | 10.45 | 136.69 | 16.58 | 169.28 | 15.89 | 308.70 | 0.3376 | -1365.8 | -405.9 | |
| 1.18 | -1.00 | 0.62 | -1.00 | 17.05 | 169.16 | 15.76 | 310.03 | 0.3406 | -722.3 | 999999 | |
| 6.17 | -1.00 | 3.24 | -1.00 | 16.30 | 169.03 | 15.63 | 308.46 | 0.3317 | -1410.2 | 999999 | |
| 0.91 | -1.00 | 0.48 | -1.00 | 16.93 | 169.05 | 15.65 | 309.93 | 0.3380 | -1022.7 | 999999 | |
| 3.54 | -1.00 | 1.86 | -1.00 | 16.59 | 168.79 | 15.39 | 309.57 | 0.3314 | -1337.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 16.14 | 167.74 | 14.34 | 310.36 | 0.3136 | -775.0 | -536.6 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 21.48 | 166.56 | 13.16 | 324.04 | 0.3624 | 674.0 | 506.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 20.47 | 166.17 | 12.77 | 323.02 | 0.3458 | 789.0 | 677.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 18.99 | 164.33 | 10.94 | 324.28 | 0.3087 | 864.0 | 666.1 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 17.78 | 162.83 | 9.43 | 325.71 | 0.2781 | 917.0 | 730.2 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 17.63 | 162.69 | 9.29 | 325.76 | 0.2747 | 875.0 | 723.4 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 22.95 | 162.18 | 8.78 | 335.97 | 0.3469 | 874.0 | 611.3 | |
| 0.00 | 2.09 | 0.00 | 1.09 | 21.58 | 161.73 | 8.33 | 335.27 | 0.3235 | 654.0 | 610.2 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 20.42 | 160.26 | 6.86 | 337.70 | 0.2963 | 1167.0 | 933.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
