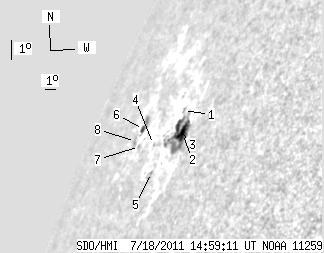

SDO HMI 2011-07-18 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.15 | 58.43 | 21.23 | 104.91 | 24.55 | 79.09 | -74.30 | 65.74 | 0.9611 | -292.9 | -97.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-07-18 14:59:11 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.54 | 0.00 | 2.69 | 25.35 | 79.49 | -73.91 | 64.91 | 0.9600 | -253.0 | -133.0 | |
| 8.80 | 43.55 | 14.59 | 73.34 | 24.65 | 80.47 | -72.92 | 65.59 | 0.9554 | -584.4 | -177.8 | |
| 1.54 | -2.00 | 2.65 | -2.00 | 24.79 | 79.66 | -73.73 | 65.48 | 0.9591 | -277.3 | 999999 | |
| 0.00 | 0.82 | 0.00 | 1.57 | 24.08 | 77.76 | -75.63 | 66.29 | 0.9671 | 482.0 | 431.0 | |
| 0.00 | 0.73 | 0.00 | 1.30 | 23.24 | 78.91 | -74.49 | 67.13 | 0.9622 | 322.0 | 356.5 | |
| 1.81 | 6.90 | 3.99 | 15.18 | 24.42 | 75.63 | -77.77 | 65.98 | 0.9752 | 261.3 | 177.1 | |
| 0.00 | 1.81 | 0.00 | 3.86 | 23.89 | 76.09 | -77.30 | 66.52 | 0.9735 | 306.0 | 243.4 | |
| 0.00 | 3.08 | 0.00 | 6.97 | 23.99 | 75.24 | -78.15 | 66.43 | 0.9765 | -322.0 | -268.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
